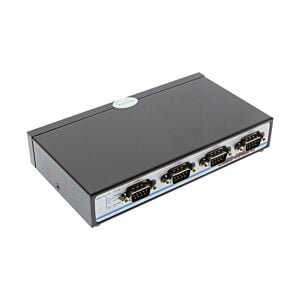

USB to serial 4 Port DB-9 RS-232 Adapter with FTDI Chip

USB BAY Docking USBG-BAY4 Serial Adapter Box

RS232 Port X 4 feature a rugged metal enclosure!

Industrial USB to Serial Converter

• NEW MODEL DOES NOT REQUIRE AC ADAPTER
• Four Port Serial RS-232 DB-9 Box USB Converter
• 6ft. USB A to B Detachable cable (can be extended up to 15ft)
• Driver CD
• Easy Instructions Booklet

USBG-BAY4 Item uses FTDI chip 232RL 4S RS232 to USB Adapter w/ Metal Case

All New SerialGear(TM)

• Provides 4 RS232 Serial Ports over USB Port
• Provides 4 DB-9 Connectors
• Baud Rate from 75 bps to 921.6Kbps
• 512-Byte Deep FIFOs for each Port
• Supports 5,6,7,8 Data Bits
• Odd, Even, Mark, Space, or None parity mode
• Supports 1, 1.5 and 2 Stop Bits
• Supports USB Bus Power
• DC Jack for Optional DC 5V Power Input

INTRODUCTION

The USBG-BAY4 is a 4 port DB9 RS232 to USB serial adapter that is designed for PC, thin client, or server to provide instant COM port expansion via the Universal Serial Bus (USB).

The USBG-BAY4 provides the scalability to quickly adapt to new USB technologies.

Multiple modules can be added to a single USB interface allowing you to add RS232 connectivity as needed. Complete product line offer many choices help you to expand and make your network grow with your requirements.

With the USB Plug-and-Play feature, simply plug in, follow the instructions of Install Wizard, then you are done.

You dont have to deal with Card Slots, I/O address, IRQ jumpers, DMA and others when you are connecting the devices. The System will recognize the device and install the drivers automatically.

The USBG-BAY4 is an ideal solution for your expanding applications.

SPECIFICATIONS

 USB Port Fully compatible with USB 1.0 and USB 1.1; Forward compatible with USB 2.0

• Serial Port Supports 4 DB9-Male UART Serial ports
• Data Rate from 75 bps to 921.6Kbps
• 512-Byte Deep FIFOs for each Port
• Supports 5,6,7,8 Data Bits
• Supports 3-wire RS232 Signals (TXD, RXD, GND)
• Odd, Even, Mark, Space, or None parity mode
• Supports 1, 1.5 and 2 Stop Bits
• Rigid Metal Case for Critical Applications

Power Requirements:

• Normally Power solely from USB Bus, no external power supply needed.
• +5V DC Jack Input for supports Power over DB9-Male applications.

Form Factor 6.83(L) x 3.83(W) x 0.96 (H) (17.35 x 9.72 x 2.43 cm)
