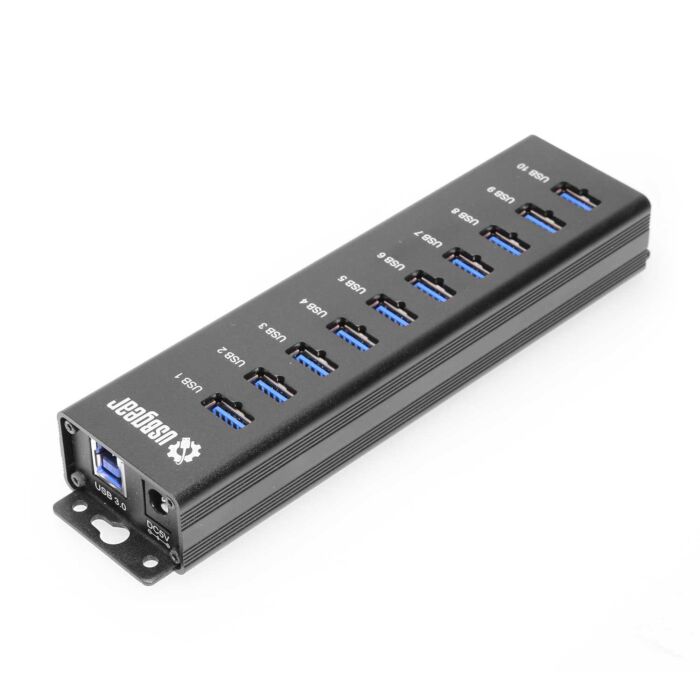

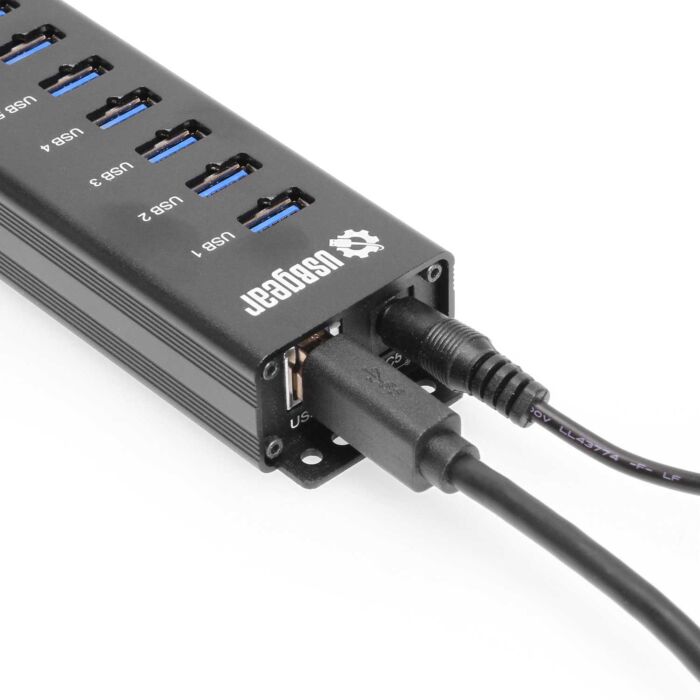

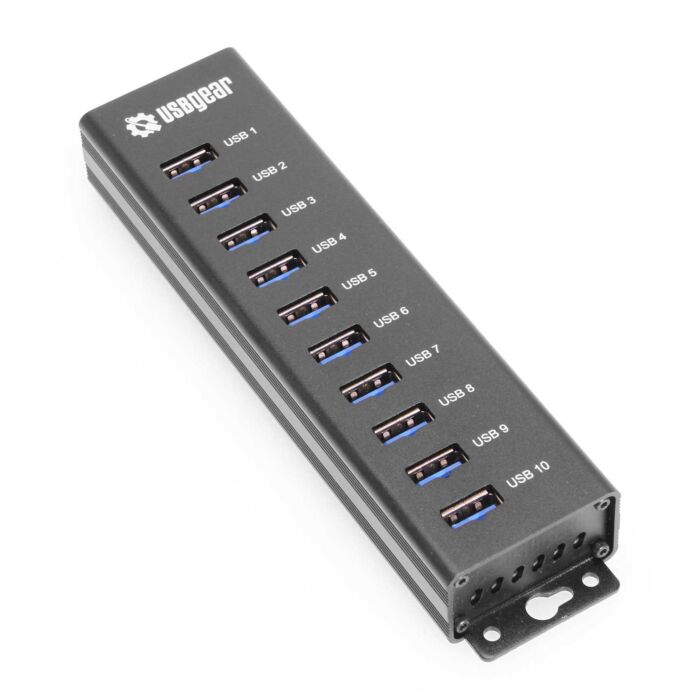

10-Port USB 3.2 Gen 1 Mountable Charging and SuperSpeed Data Hub
Model Number: USBG-BREC3010
Documentation & Downloads
10-Port USB 3.2 Gen 1 Mountable Charging and SuperSpeed Data Hub
$53.29
Details
10-Port USB 3.2 Gen 1 Hub for Charging and Data

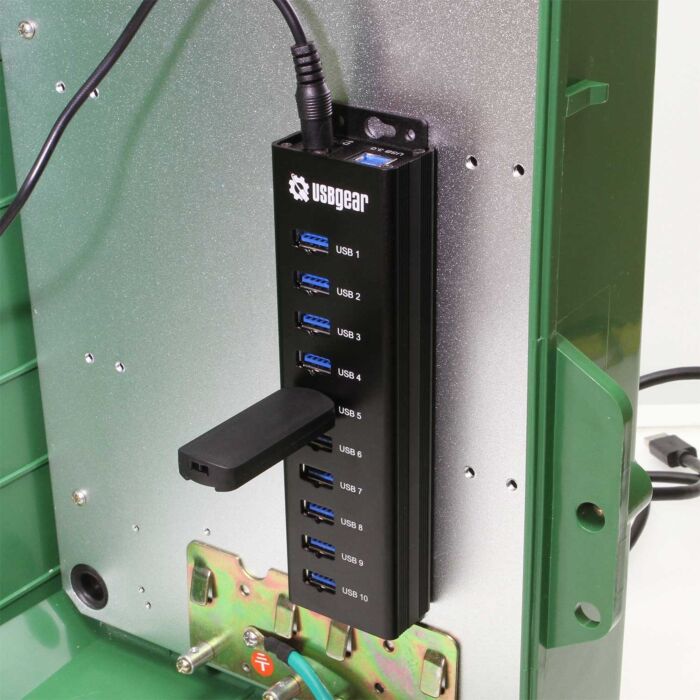

USBGear's USBG-BREC3010 is a USB 3.2 Gen 1 10-Port Hub that mountable to any flat stable surface. The hub’s 5Gbps data transfer rates are standard for USB 3.2 Gen 1 SuperSpeed for streaming information or other data. The USB 3.2 Gen 1 hub is easily transported with its small form factor design or can be placed in a stationary position by wall or table top mounting.
The USB 3.2 Gen 1 10-Port hub is housed in a heavy duty extruded aluminum chassis holding 10 USB ports with mounting flanges on either end for stationary uses. The hub follows Battery Charging specifications 1.2 distributing up to 900mA* to each port for normal charging, it is designed for excellent heat distribution while in operation in various environments transferring data at USB 3.2 Gen 1 speeds. The USBG-BREC3010 hub is also backward compatible with specifications of USB 2.0 High Speed or, USB 1.1 Low Speed.
Suggested USB 3.2 Gen 1 hub applications may include: Industrial, Medical, Education, Business, Laboratory, and Gaming.
Power Output Specifications:
- Per-Port Output: Up to 900mA @ 5V
- Total Power Budget: 20W (shared across all ports)
⚠️ *Note: While each port can provide up to 900mA individually, the total available power for the device is limited to 20 watts. Actual available current per port will vary depending on the total number of connected devices and their power draw.
USBG-BREC3010 Features
- Adds 10 USB 3.2 Gen 1 ports via its included Type-A to Type-B Cable
- Backward compatible with USB 2.0/1.1
- Includes a charging function to power each port up to 900mA*, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Supports SuperSpeed USB 3.2 Gen 1 over each port with transfer rates up to 5Gbps.
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
- Bus-Powered with Limit current protection.
- Dimensions in Inches: 6.161in(L) x 1.691in(W) x .959in(H) with ears 6.771in(L)
- Dimensions in MM: 156.48mm(L) x 42.95mm(W) x 24.36mm(H) with ears 177.98mm(L)
OS Support:
- Windows 7, 8, 10, 11
- Linux
- Mac OS 10.X

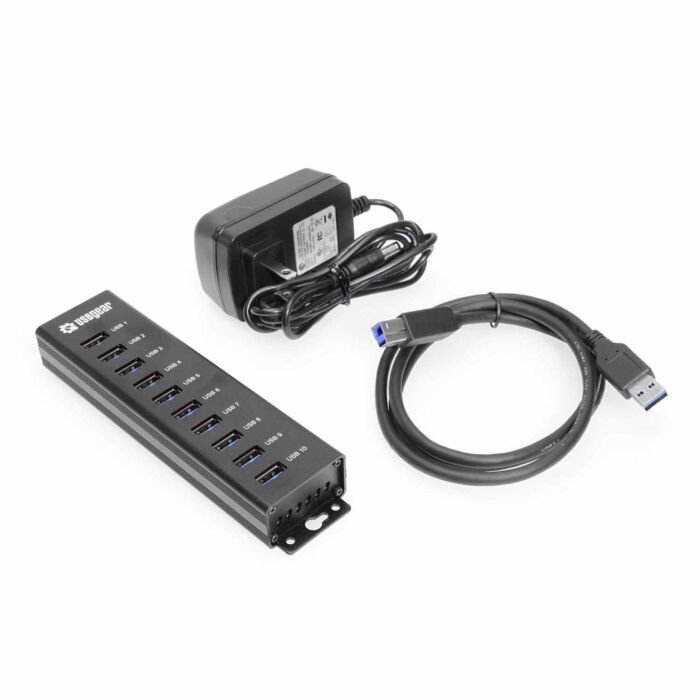

Package Contents
- 10-Port USB 3.2 Gen 1 Compact Hub
- Power Adapter
- 3ft USB 3.2 Gen 1 Type-A Male to Type-B Male Cable
Technical Specifications
| UPC | 736983901484 |
|---|---|
| Country of Origin | China |
| Manufacturer | USBGear |
| Warranty | One Year |
| Item Length (in) | 6.16 |
| Item Width (in) | 1.69 |
| Item Height (in) | 0.96 |
| Item Weight (lbs) | 0.31 |
| Cable Length | 3 feet |
| LED Indicators | Power |
| Downstream Port Count | 10 |
| Chip Model | VL817-Q7 |
| Input Voltage | 5V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
