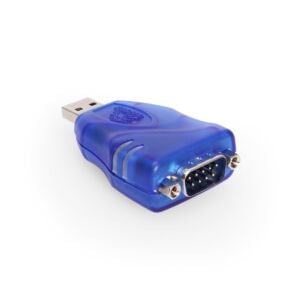

Industrial Professional USB Serial Adapter RS232 FTDI with 5Volt Out

USB Serial Adapter RS232 with 5Volt Output Option on Pin9 Selectable Via Jumper, Great for Barcode Scanners and POS devices. FTDI Chip with Windows 7 Drivers Supports Windows 7 and Vista (32 and 64-Bit) Install as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND This USB to Serial converter allows you to connect a RS-232 serial device such as a modem to a USB port on your Desktop or Laptop PC.

Connect MOST Serial Devices to a USB Port Microsoft Certified and Signed Drivers High Speed Serial Best in Class Compatibility Data and Status LED Plug&Play Bus Powered The Ultimate USB Serial Adapter PC/MAC/Linux Fully RoHS compliant and is CE and FCC approved. Virtual COM port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC.

Application software can access the USB device in the same way as it would access a standard COM port.

Drivers are available for:

• Windows 7 32/64-Bit
• Windows 8/8.1
• Windows 10
• Linux
• Mac OS X

Drivers and Utilities CD complete with Microsoft WHQL certified VCP drivers for Windows XP.

RS232 DB9 male port Speed up to 921.6kbps no external power supply Overview Serial ports on USB allow further use of existing devices, even when the computer doesnt offer serial ports. The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load.The serial port also allows unusual speed settings like 500.000bps.

Hardware Specifications

• Ports: One RS232 port Speed up to 921.6kbps
• RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Power: USB bus powered, no external power supply
• Connectors: one DB9 male

Ordering Information Product Name VScom USB-COM Packing list VScom USB-COM Adapter USB cable 0,25m CD, English Documentation USB Gear new 12" USB Serial Adapter, With its new ultra sleek and powerful Hi-Speed DB-9 Serial adapter. Comes with software drivers and manual.

USB to Serial Adapter FEATURES

• OVER 500 kbps Data Transfer
• No Power Adapter Required (Draws power from USB Bus)
• Works with Modems, PDAs, Cell phones, Digital Cameras and more serial legacy devices Features industry standard FTDI logic board for compatibility
• Baud rate from 9600 baud all the way up to 920K
• No IRQs to assign, NO IRQ Conflicts
• LED visuals for transmit and receive between devices
• Compatible with: Windows 98, 2000, ME, XP / MAC 8.6, 9.0, 9.1/Linux
• Operating Temperature 15 to 55 degrees (Celsius)
• Storage Temperature -5 to 75 degrees (Celsius)
