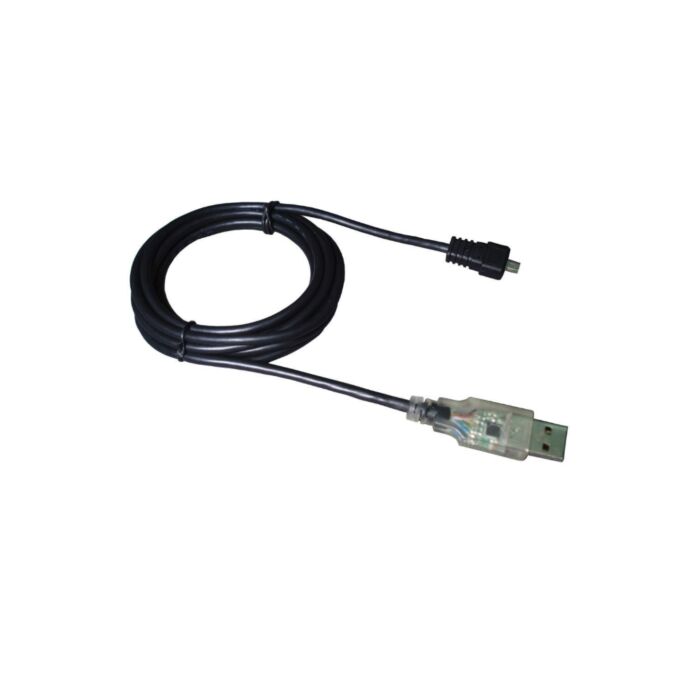

USB to UART with +3.3V TTL Adapter

The USA-TTL3 USB to Serial UART Transistor-Transistor Logic (or TTL level) adapter allows you to connect your computer through USB port and use it as a regular serial communication. All USB protocol is handled within this adapter. There is no other device or programming required.

The Mini USB 8-pin Male connector supports the UART interface, this 3 foot adapter is perfect for embedded systems that require a serial connection to a computer. The board attaches directly to the USB bus via a standard type A receptacle connector. The TTL cable adapter shows up on any Windows computer as a standard serial COM port. Any applications that talk to this COM port is automatically converted to USB and back to UART.

USB to UART with +3.3V TTL Adapter Features

• Compliant with USB ver. 2.0 & 1.1
• Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
• +3.3V output allows external logic to be powered from the USB port
• Voltage level Supports +3.3V based UART signals and +3.3V / 50mA power output
• Upstream connector type A Male
• Device connector Mini USB 8-pin Male
• Molded PVC Housing

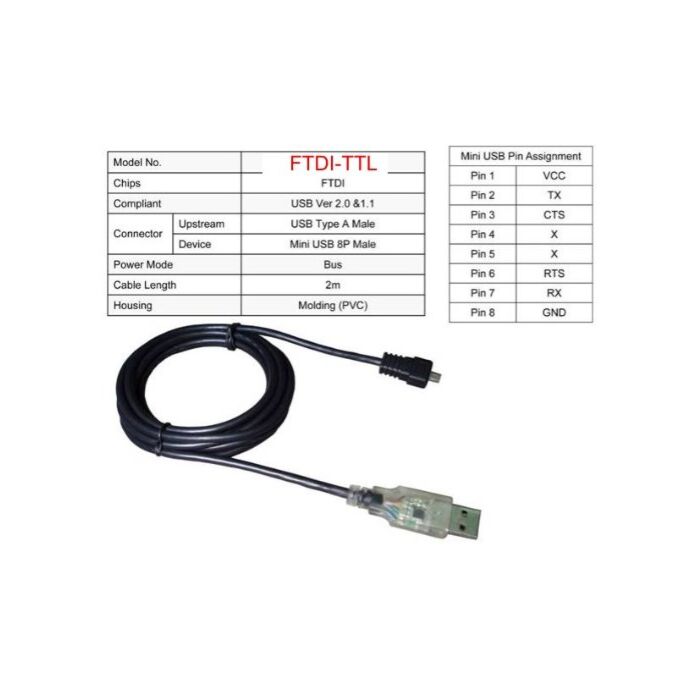

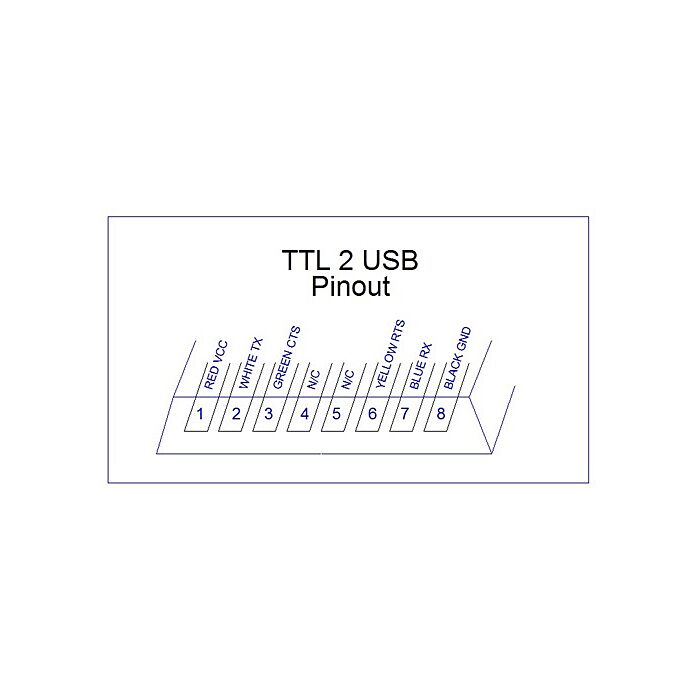

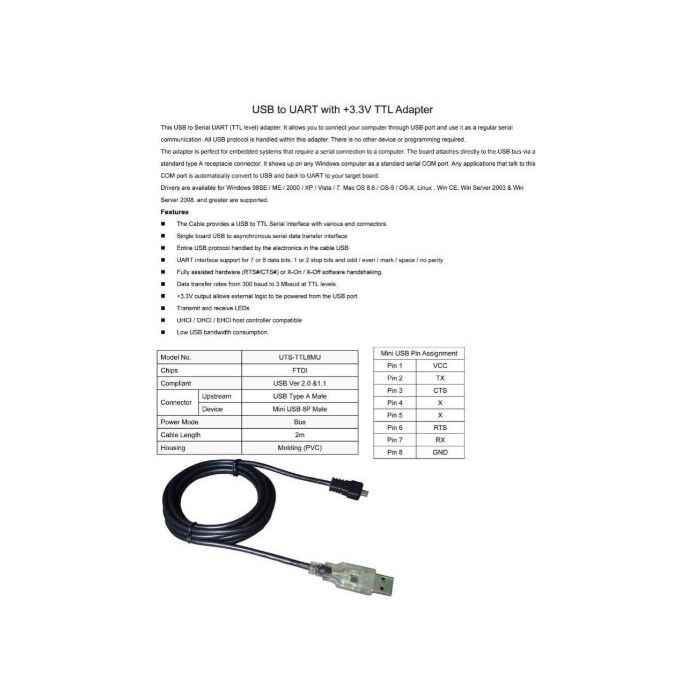

Mini USB Pin Assignment

• Pin 1    VCC
• Pin 2    TX
• Pin 3    CTS
• Pin 4    X
• Pin 5    X
• Pin 6    RTS
• Pin 7    RX
• Pin 8    GND
