Introduction:

The CG-10U3AML is an USB 3.2 Gen 1 Hub that comply with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and work up to 5Gbps. It provides 10 downstream facing ports with standard A-type USB3.2 screw-lock connectors. Each downstream port has a Transaction Translator (TT) for legacy USB devices.

The CG-10U3AML provides a unique self-power mode to work with wide range (+7~24V) input DC power from its terminal blocks. It supports USB charging specifications Rev. 1.2 by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP). It supports fast-charging for Android and Apple devices (up to 2.4A).

Since the USB is the most popular external port for the devices to connect to PCs, the CG-10U3AML provides an ideal solution to expand your USB ports to accommodate most critical applications immediately and save your investment.

Specifications:

System

For Systems with USB3.2 Gen 1, USB2.0, or USB1.1 Ports

USB Ports

Provides 10 USB downstream ports that manages up to 5Gbps:

• Compliant with USB Specifications 3.2 Gen 1
• Provides 10 USB3.2 Gen 1 Downstream Facing Ports
• Supports BC v1.2: SDP, CDP and DCP Modes
• Supports Fast-Charging Feature for Android and Apple Devices (up to 2.4A)
• Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
• Supports Multi Transaction Translators
• Supports Wide Range Input Self-power Mode from Terminal Blocks
• Supports +7~24V DC Wide Range Self-power Input
• Supports USB Screw-lock Cable Mechanism
• Supports 15KV ESD Protection for Each Port.

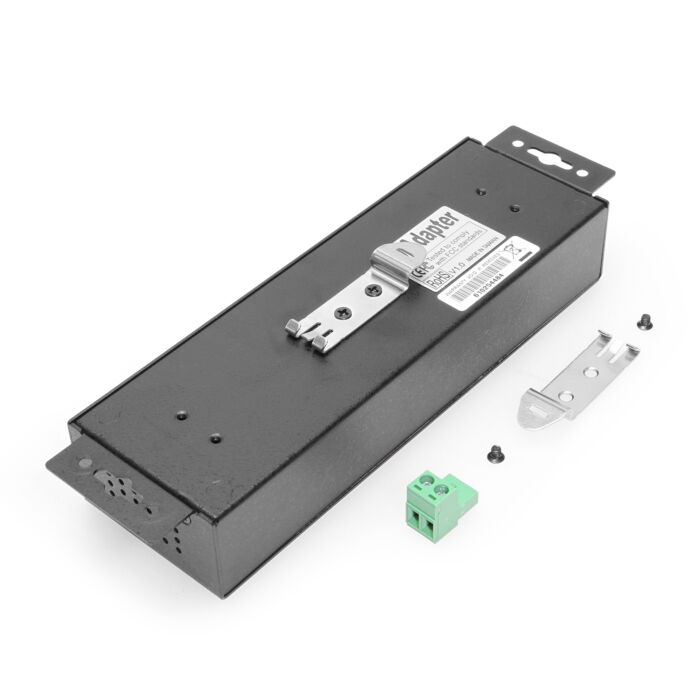

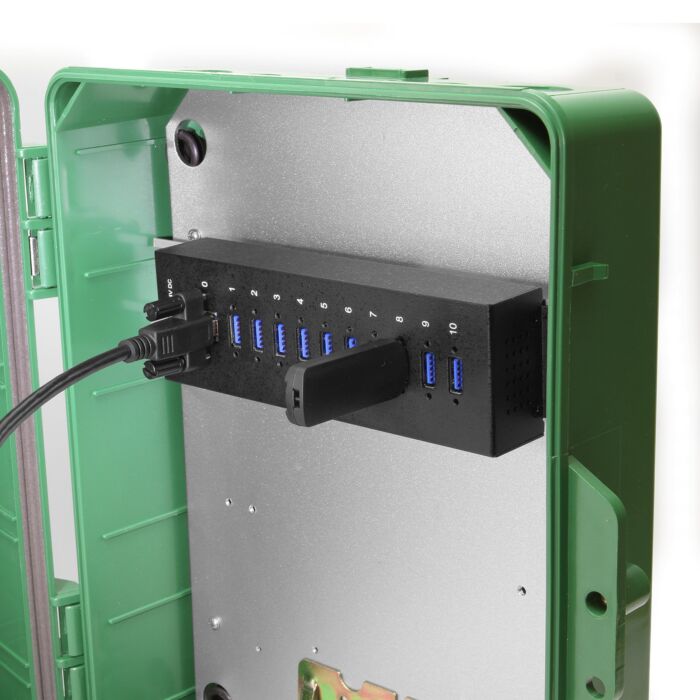

• Flexible Mounting Options: Wall and DIN Rail Mount

USB Devices

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, Tablet, telephone, DVD drive, joystick, virtual reality helmet, modem, PBX and many more USB devices

I/O Hardware

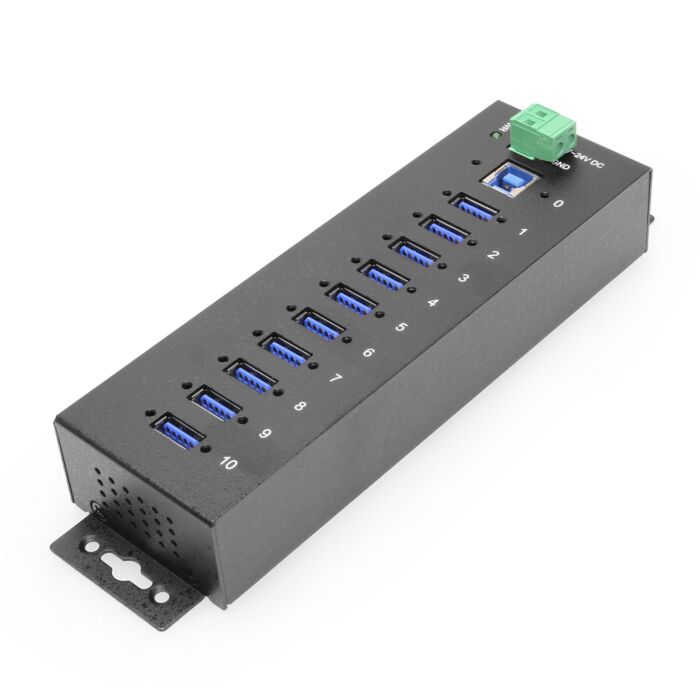

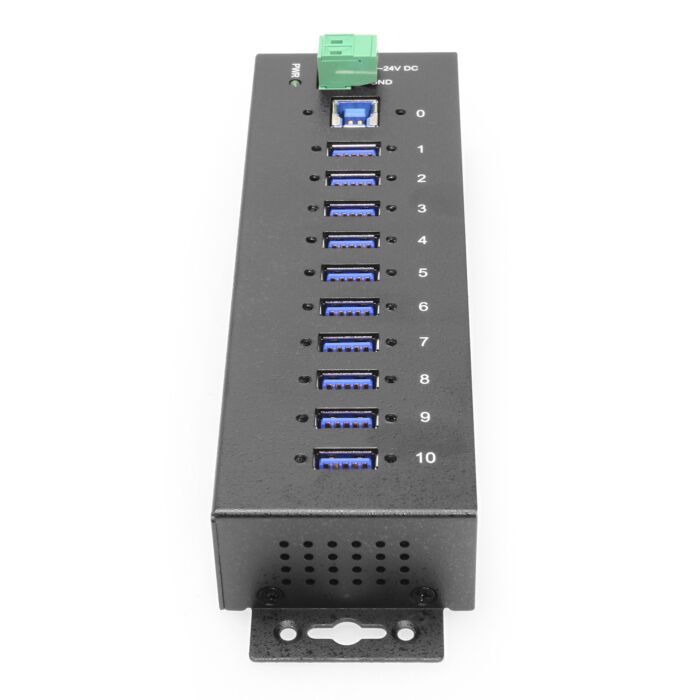

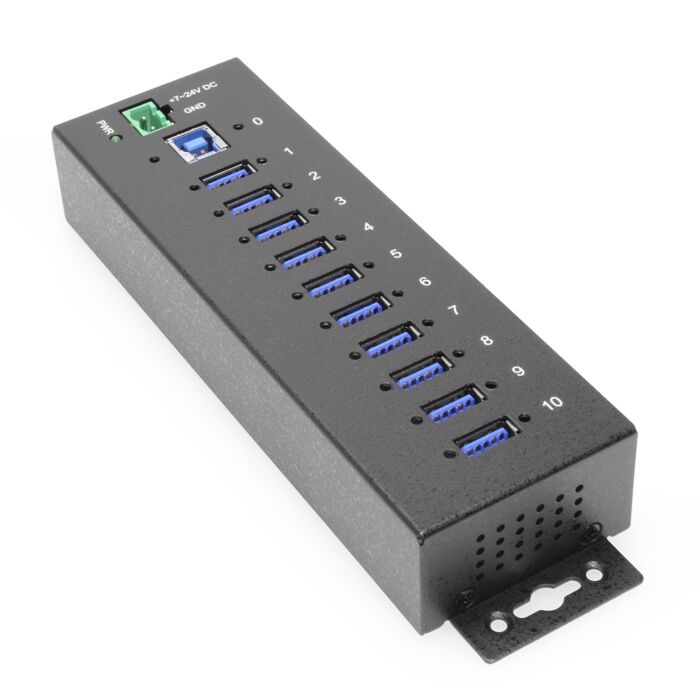

• Supports 10 external USB3.2 Type-A connectors and 1 USB3.2 Type-B Upstream connector.
• Supports a 2-pin Terminal Block Connector for external power input from AC adapter

Environmental:

Operating Temp.: 0 to 70°C (32 to 158°F)

Storage Temp: -20 to 85°C (-4 to 185°F)

Operating Humidity: 5 to 95% RH

Form Factor

7.78”(L)x2.18”(W)x1.22”(H) (197.7×55.5×31.0 mm)

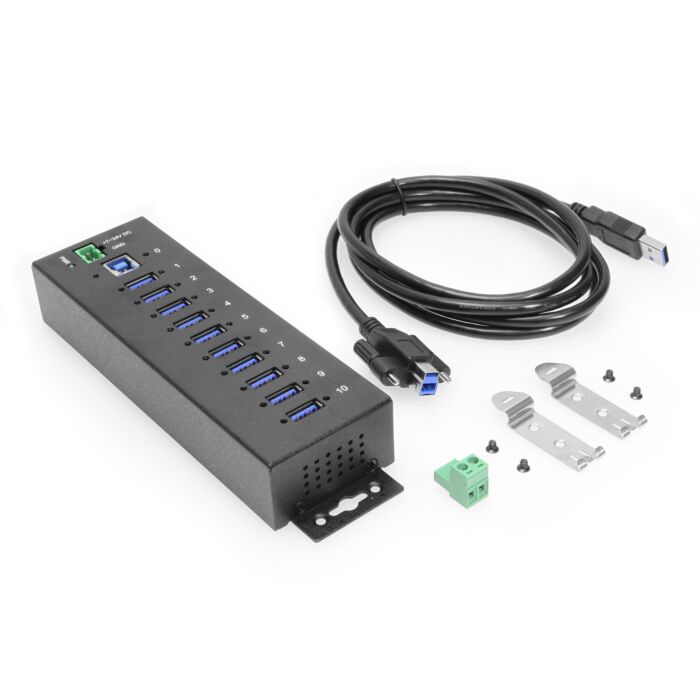

Package Contents:

• 10 Port USB 3.2 Gen 1 Hub
• USB-A to Screw Lock USB-B Cable
• 2-Pin Terminal Block
• DIN Rail Mounting Clips
• Screw Pack

*Surface Mounting screws not included.
