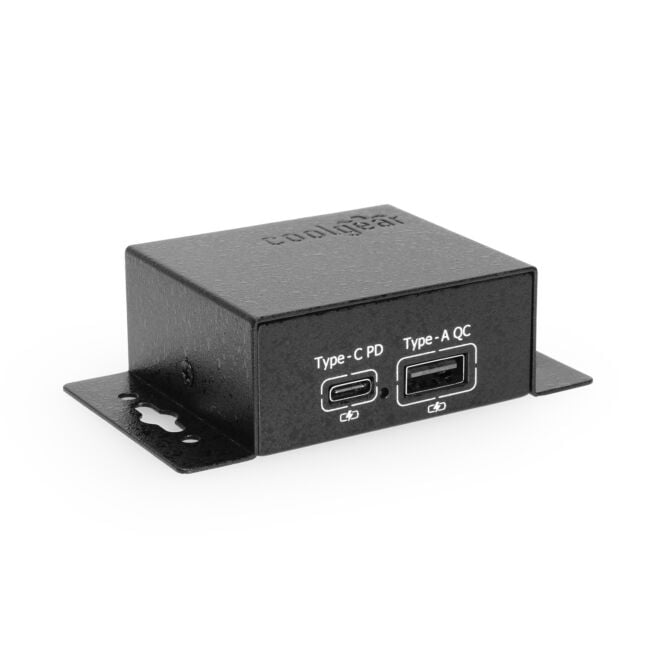

Chargeit! Mini 75W Dual Port USB-A & USB-C PD Charger w/ PPS & QC4.0 Support
Industrial Grade | +9~24V DC Input | Over Voltage & Current Protection | Surface Mountable
- Simultaneous Charging: Charge 2 iPads, iPhones or other USB-charged in charge mode devices, while the built in PD chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance.
- Quick Charging: Provides up to 75W of combined charging. The USB-A port supports QC 3.0 while the USB-C port supports QC 4.0.
- PPS: Programmable power supply capability allows for small step-wise changes in voltage, current, and for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).
- Superior Build Quality: Housed in a rugged metal chassis, the 2-port charger hub is perfect for installations in offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications
- Downstream: 1 USB Type-A QC Port, 1 USB Type-C PD Port
- Power Connector: 2-Pin Terminal Block
- Mounting Options: Wall & Surface
- LED Indicators: Power
Chargeit! Mini Provides a combined 75watts of Pure Power to your Devices simultaneously.
Coolgear’s Chargeit! mini USB PD Charger features an industrial-grade chassis with 1 USB Type-A and 1 USB-C charging port. It is designed to handle the harsh environments of industrial and commercial charging applications. This high-power dual port industrial adapter uses the Cypress CCG3PA, a highly integrated USB C port controller that complies with the latest USB C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers, and power bank applications, your adapter supports one USB Type-C port and one USB QC 4.0 Type-A Charger port for normal charging.
This Dual Port PD Power Injector Charger adapter with 9~24Volt DC input provides USB Type-A with True support for QC4.0 as well as Samsung/LG/Apple up to 2.4A.
Your adapter also comes equipped with integrated voltage regulation, system-level fault, and ESD protection.
Supports USB PD3.0 including Programmable Power Supply
Programmable Power Supply (PPS) capability allows for small step-wise changes in voltage and current. PPS capability allows for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).
The USB PD 60W adapter supports full-featured PD profiles on USB 3.1 Type-C Port 60 Watt maximum output. It connects to a standard 12V automotive power input or industrial 24V power input via 2-Pin Phoenix Connector. The USB PD adapter with type C port supports up to 60 Watts of PD Power, 5~20 Volt profiles and compatible with ALL USB power delivery devices.
FCC Approved, Low EMI/RFI Metal Enclosure with Mounting Brackets
Dual Port Charger
- Dual USB Port Industrial Charger PCB: USB C (Type-C) port with power delivery + USB-A QC 4.0 Port
- USB-A with Quick Charge 4.0 technology that provides up to 18W of charging power and a USB-C with Power Delivery CYPD CCG3PA Chipset enables up to 60W.
Power Output Specifications
- 60 Watts USB C PD (5V/3A, 9V/3A, 15V/3A, 20V/3A)(PPS 5.0~5.9V/3A, PPS 3.3~20V/3A)
- 18 Watts USB A QC 3.0 (9V 2A, 6V 3A)
- 78 Watts Peak Total Combined Power Output (75 Watts Nominal Total Combined Output)
The innovative, high-performance universal charger made with a heavy-duty Powder Coated Steel frame allows for one of the fastest and most efficient charging experiences for cell phone (Galaxy note 8 / s8 / s8 plus, iPhone/iPad), new Macbook 12-inch / Macbook Pro, and other USB-C laptop/notebook.
Power Delivery (PD) Integration with Programmable Power Supply: Intelligently detects your device and delivers the optimal voltage/current for a specific device. Meets new energy efficiency requirements of DOE Level VI – the highest energy efficiency rating. Equiped with the advance circuit protections to prevent overcharging and a built-in LED light indicator (up to) helps to signify charge is ready to use.
Package Contents:
- 75W Dual Port USB Charger
- 2-Pin Phoenix Terminal Block
*Surface Mounting screws not included.
Model Number | CG-PD60PPS |
---|---|
UPC | 045079161368 |
Color | Black |
Manufacturer | Coolgear |
Warranty | 1 Year |
OS Compatibility | OS independent - No software or drivers required |
Item Length (in) | 3.48 |
Item Width (in) | 1.99 |
Item Height (in) | 1.03 |
Item Weight (lbs) | 0.281 |
Country of Origin | China |
Material | Steel |
Short Description | Industrial Grade | +9~24V DC Input | Over Voltage & Current Protection | Surface Mountable
|
Downstream Port Count | 2 |
Downstream Port Type | 1x Type A (Charging), 1x Type C (Charging) |
Max Data Transfer Rate | N/A |
LED Indicators | Power |
Input Voltage | 12 ~ 24V DC |
Chip Model | Cypress CCG3PA |
