USB 3.2 Powered 4 Port Mini Hub with ESD & Surge Protection
$47.29
Regular Price
ESD and Surge protection over each individual USB 3.2 port. An industrial-grade USB 3.2 Mini 4 Port Hub that gives you up to 5Gbps of data transfer speed and a surface mount capability. Includes and 5V DC input jack for self-power option.
Availability:
On Backorder
Model Number: CG-U3MINI4PH
Documentation & Downloads
USB 3.2 Powered 4 Port Mini Hub with ESD & Surge Protection
$47.29
Details

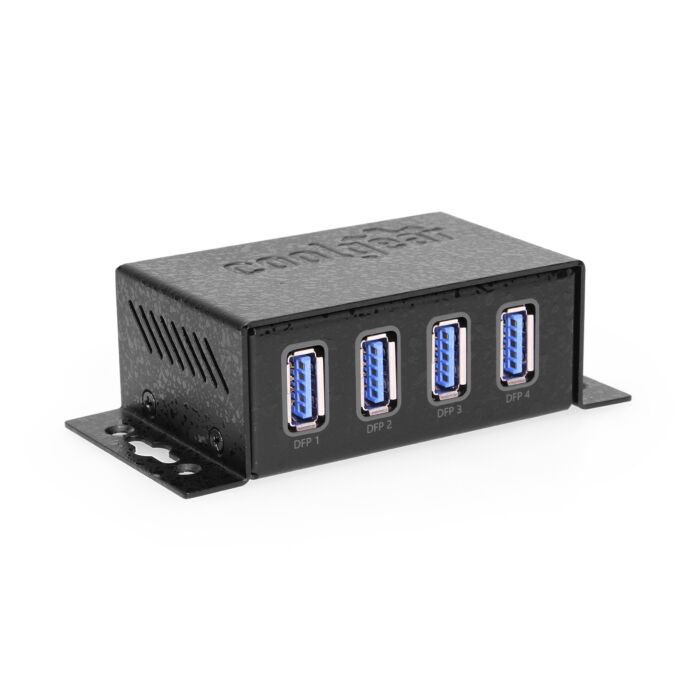

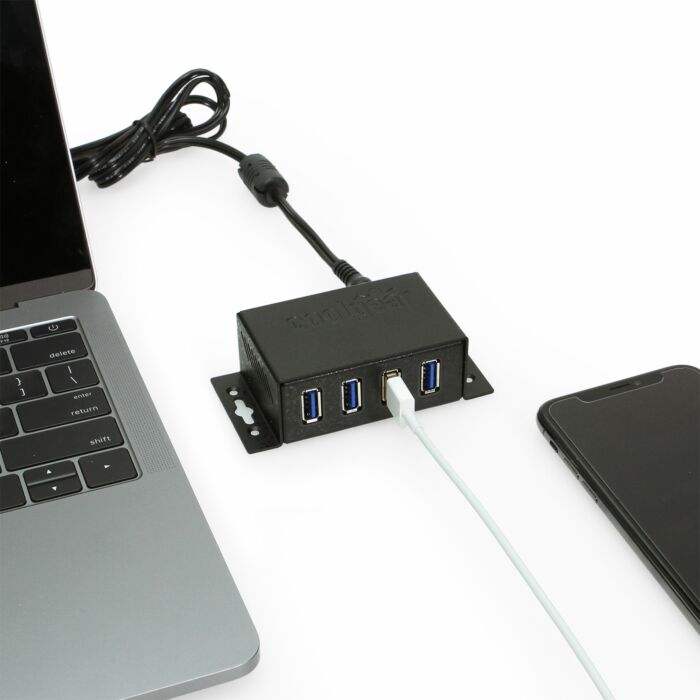

Compact, Mountable USB 3.2 Gen1 4 Port Hub w/Power Adapter

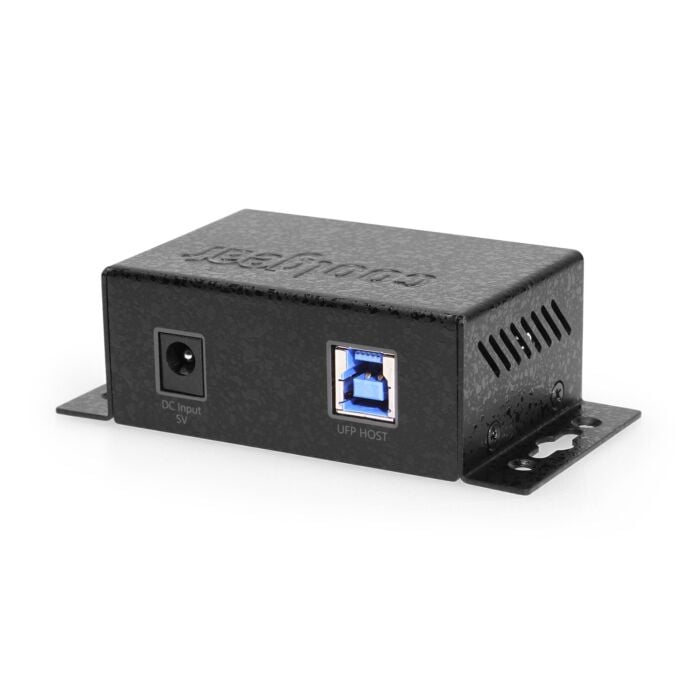

USB 3.2 powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI4PH is a 5V DC input, generation 1 USB 3.2 hub with ESD and Surge protection. This USB 3.2 Hub will support fast charging for Apple 1A/2.4A and Samsung Galaxy devices.

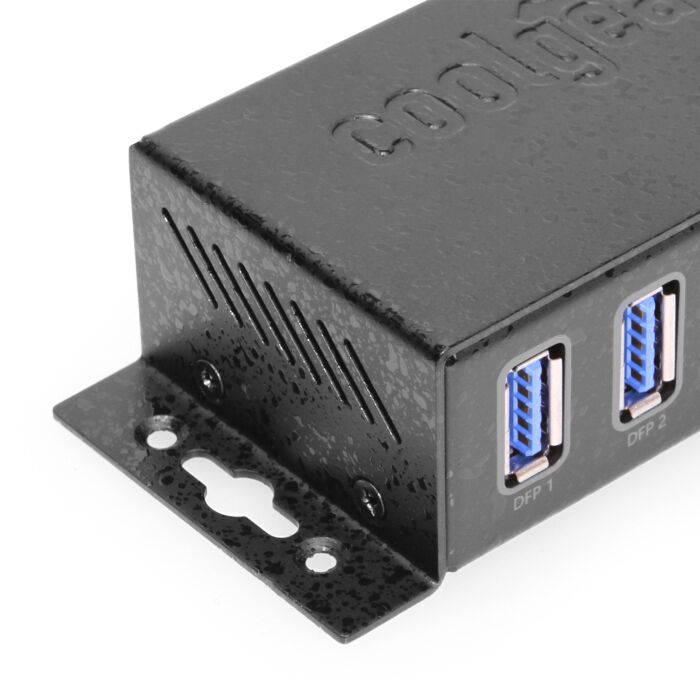

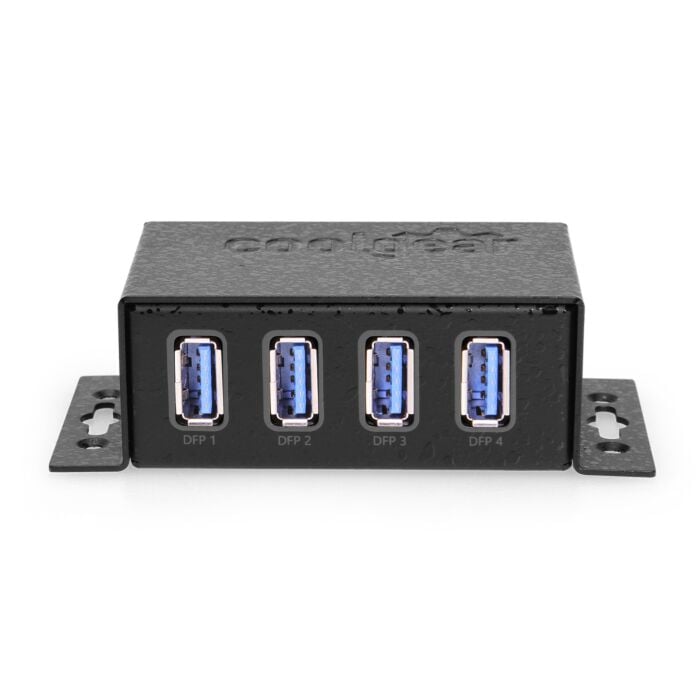

USB 3.2 Gen1 Hub DFP Labeled

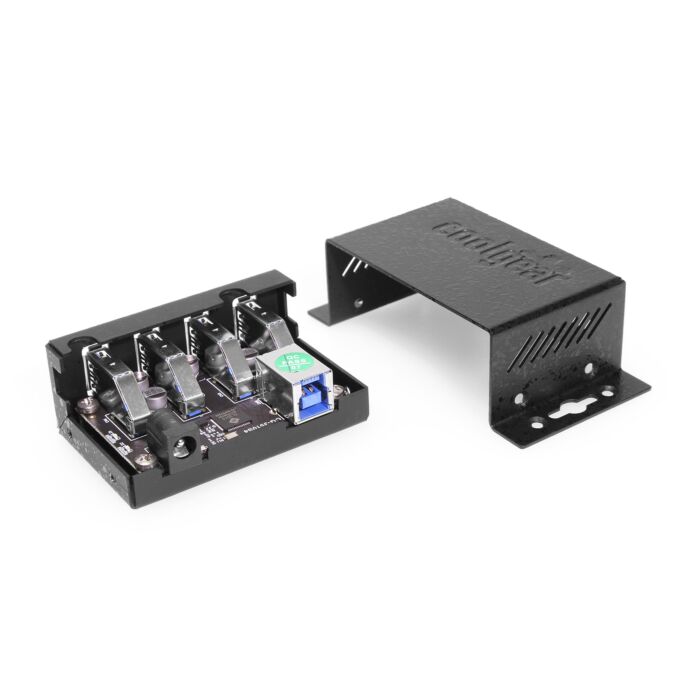

Each port is protected individually to help keep your peripherals safe. The USB 3.2 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.
USB 3.2 4 Port Mini Hub Features
- Compliant with USB 3.2 Gen 1 Specification
- Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
- Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
- 1 control pipe and 1 interrupt pipe
- Backward compatible to USB specification Revision 2.0/1.1
- Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
- Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
- Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
- Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
- Supporting Apple 1A/2.1A/2.4A and Samsung Galaxy devices fast-charging
- Compatible with Windows 7, 8, 10, 11, Linux & Mac OSX
Specifications
- Chip: GL3510
- USB 3.2 Gen Compliant
- Supports High Speed and Full Speed transmit and Receive
- Complies with USB-IF battery charging specification rev1.2
- Automatic switching between self-powered and bus-powered modes
- Built-in 5 to 3.3V and 5 to 1.2V regulator
- RISC-like architecture
- Item Dimensions: 2.86"(L 3.8" w/ears) x 1.85(W) x 1.16(H)
Package Contents
- USB 3.2 4-Port Hub
- 4Amp 5V DC Mini-Switching Power Adapter
- USB A to B Cable for Hub
*Surface Mounting screws not included
Technical Specifications
| UPC | 045079158399 |
|---|---|
| Country of Origin | China |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 2.86 |
| Item Width (in) | 1.85 |
| Item Height (in) | 1.16 |
| Item Weight (lbs) | 0.32 |
| Cable Length | 3 feet |
| Connector(s) | USB 2.0 Type A Female, USB 2.0 Type B Female |
| Downstream Port Count | 4 |
| Chip Model | GL3510 |
| Input Voltage | 5V DC |
| OS Support / Compatibility | Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV (air), 8kV (contact) |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
