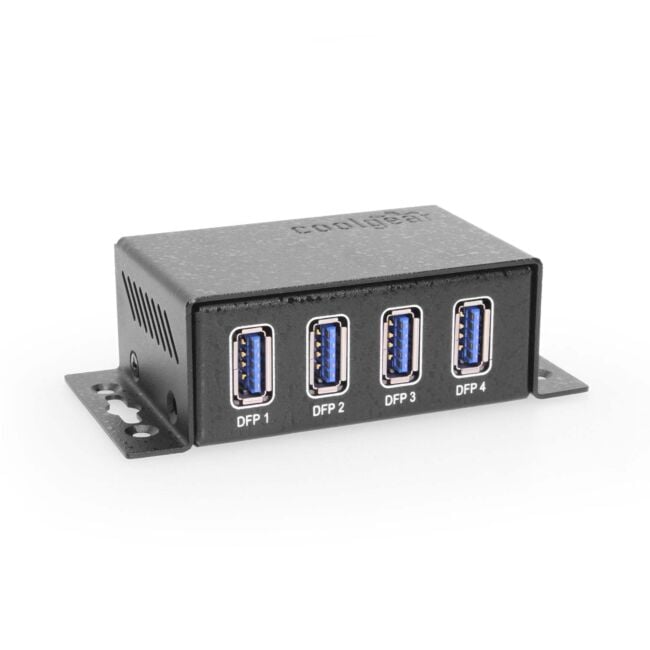

4 Port USB 3.2 Gen 2 Mini Powered Hub w/ ESD Surge Protection & Power Adapter
Industrial Grade | +12V DC Input | Surge Protection | Surface Mountable | 10 Gbps
- Protect Your Equipment: The 4-port hub features up to ±25KV air, ±20KV contact ESD surge protection to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed+, super speed, high speed and full speed which enables it to be compatible with USB 3.0 / 2.0 / 1.1.
- Small Footprint: Housed in a compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
- Upstream: 1 USB port, Type C connector, Single Screw-lock compatible
- Downstream: 4 USB ports, Type A connectors
- Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
- Mounting Options: Wall & Surface
Model Number: CG-U3MINI4PH-G2
Documentation & Downloads
4 Port USB 3.2 Gen 2 Mini Powered Hub w/ ESD Surge Protection & Power Adapter
$104.99
Details
Introducing the CG-U3MINI4PH-G2 4-Port USB 3.2 Gen 2 Mini Powered Hub
The CG-U3MINI4PH-G2 is an enhanced version of the CG-U3MINI4PH, bringing USB 3.2 Gen 2 performance and data speeds up to 10Gbps. Built for industrial and high-demand environments, this compact yet robust hub provides fast-charging capabilities, advanced ESD and lightning protection, and ensures data integrity through ultra-low capacitance TVS diodes. Each port features individual power switching, offering secure and efficient power management ideal for production, laboratory, and commercial use cases.
Key Features and Benefits
- USB 3.2 Gen 2 Compliance: Supports SuperSpeed+ (10Gbps) for high-speed data transfer, with backward compatibility to USB 3.0, USB 2.0, and USB 1.1 devices.
- Advanced Power Switching: Each port is equipped with independent power switches, offering a maximum power per port of 2A for safe and reliable device charging.
- Enhanced Surge and ESD Protection: Equipped with ultra-low capacitance TVS diodes to protect against ESD (up to +/-25KV air, +/-20KV contact) and lightning surges (up to 5A), ensuring robust reliability in challenging environments.
- Upgraded Power Input: Operates with a +12V input, supporting more demanding device setups with stable power.
- Multiple Transaction Translator (TT) Architecture: Dedicated TT for each downstream port guarantees Full-Speed (FS) data bandwidth even under heavy loads from multiple devices.
- Smart Power Management: Compliant with USB Battery Charging Revision 1.2, supporting various charging profiles, including CDP, DCP, and ACA-Dock for versatile device compatibility.
- Durable Industrial Design: Compact, rugged metal casing with surface-mount flanges for secure, long-term installations in industrial environments.
Package Contents
- CG-U3MINI4PH-G2 4-Port USB 3.2 Gen 2 Hub
- 12V / 4A DC Power Adapter
- 3ft. USB Type-C to Single Screw Lock Type-C Cable for Host Connection
Note: Surface mounting screws not included.
Technical Specifications
| UPC | 045079164802 |
|---|---|
| Country of Origin | China |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 3.75 |
| Item Width (in) | 1.75 |
| Item Height (in) | 1.25 |
| Item Weight (lbs) | 0.33 |
| Connector(s) | DC Barrel, USB 3.2/3.x Type A Female, USB 3.2/3.x Single/Dual Screw Lock Type C Female |
| Downstream Port Count | 4 |
| Chip Model | GL3590 |
| Input Voltage | +12V DC |
| OS Support / Compatibility | Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 25Kv |
| Max Data Transfer Rate | 10Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Female |
