4-Port USB 3.2 Gen 1 Mountable Charging and Data Hub
$25.99
Regular Price
USB 3.2 Gen 1 Hub for Charging and Data, The new USBGear USBG-BREC304 is a USB 3.2 Gen 1 compact and mountable 4 Port Hub. The hub's data transfer rates are standard for USB 3.2 Gen 1 with up to 5Gbps transmission.
Availability:
In stock
Model Number: USBG-BREC304
Documentation & Downloads
4-Port USB 3.2 Gen 1 Mountable Charging and Data Hub
$25.99
Details
USB 3.2 Gen 1 Hub for Charging and Data

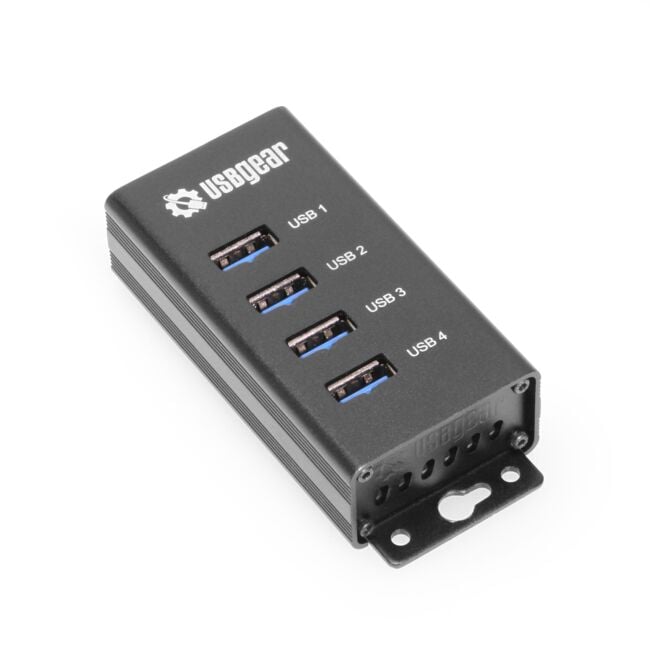

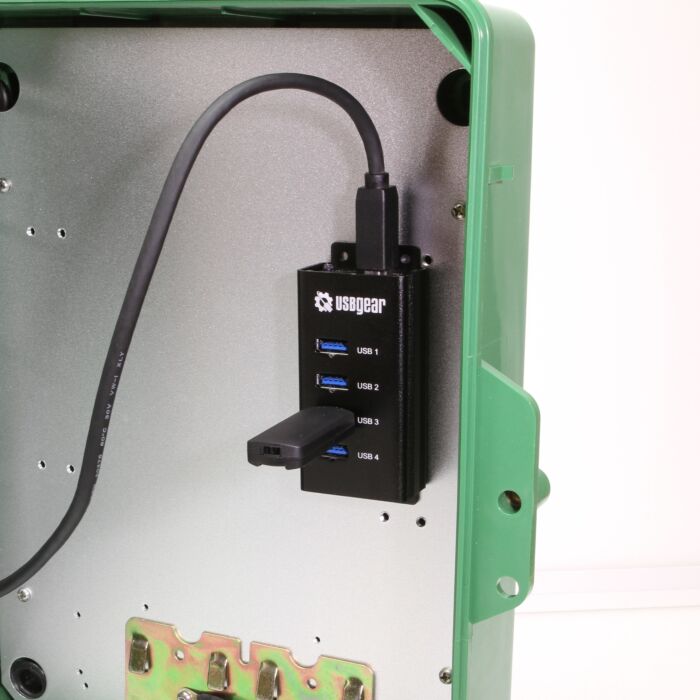

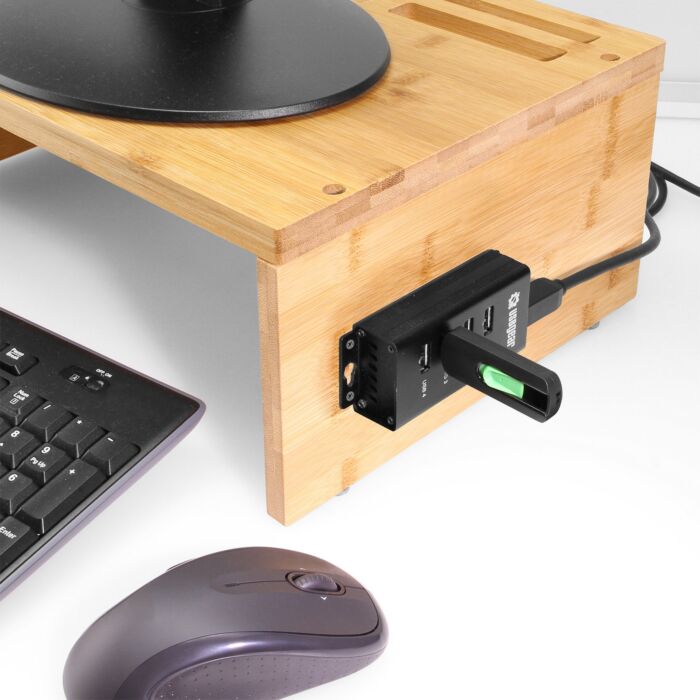

The new USBGear USBG-BREC304 is a USB 3.2 Gen 1 compact and mountable 4 Port Hub. The hub’s data transfer rates are standard for USB 3.2 Gen 1 at 5Gbps for SuperSpeed streaming information. The USB 3.2 Gen 1 hub is easily transported or can be placed in a stationary position by wall or table top mounting.

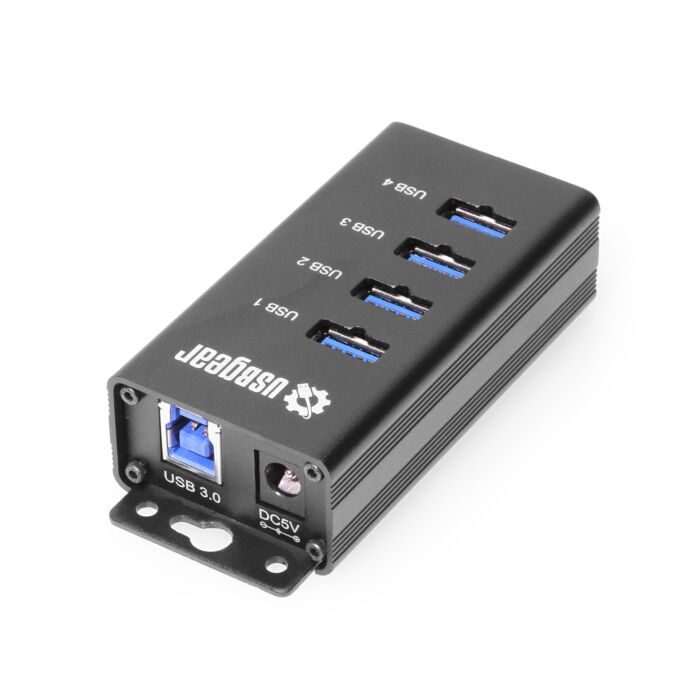

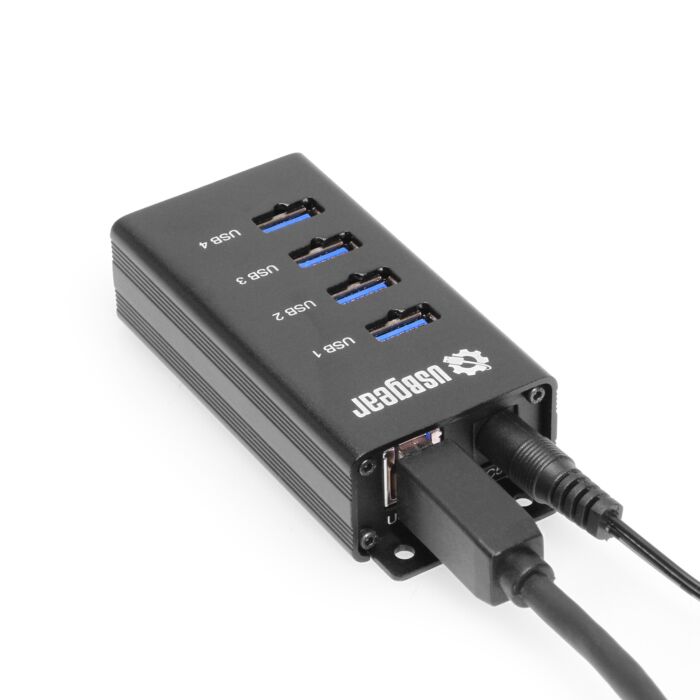

The USB 3.2 Gen 1 4-Port hub is housed in a heavy duty extruded aluminum chassis with mounting flanges on either end. It is designed to have excellent heat distribution while in operation in various environments when being used to charge a device at 900mA (follows battery charging specifications 1.2), or to transfer data at USB 3.2 Gen 1 speeds, it is also backward compatible with specifications of USB 2.0 High Speed or, USB 1.1 Low Speed.
Suggested USB 3.2 Gen 1 hub applications may include: Industrial, Medical, Education, Business, Laboratory, and Gaming.
USBG-BREC304 Features
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Supports SuperSpeed USB 3.2 Gen 1 over each port with transfer rates up to 5Gbps.
- Backward compatible with USB 2.0/1.1
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
- Bus-Powered with Limit current protection.
- Power adapter: 5V 2A output, 100-240V, 50/60Hz 0.40A
- Dimensions in Inches: 3.265in(L) x 1.691in(W) x .964in(H) with ears 3.871in(L)
- Dimensions in MM: 82.93mm(L) x 42.95mm(W) x 24.48mm(H) with ears 98.32mm(L)
OS Support:
- Windows 7, 8, 10, Windows 11
- Linux
- Mac OS 10.X

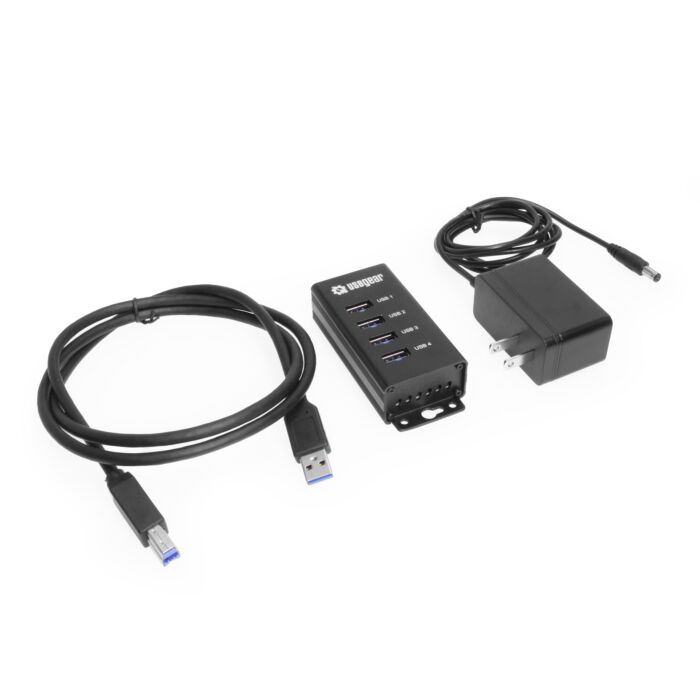

Package Contents
- 4-Port USB 3.2 Gen 1 Compact Hub

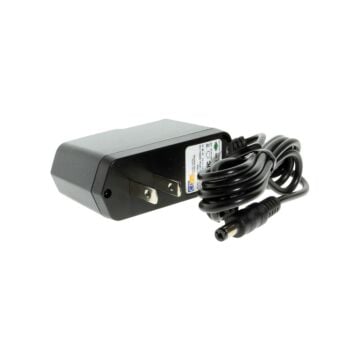

- Power Adapter: 5V 2A output, 100-240V, 50/60Hz 0.40A
- 3ft. USB 3.2 Gen 1 Type-A Male to Type-B Male Cable
Technical Specifications
| UPC | 736983901460 |
|---|---|
| Country of Origin | China |
| Manufacturer | USBGear |
| Warranty | One Year |
| Item Length (in) | 3.26 |
| Item Width (in) | 1.69 |
| Item Height (in) | 0.96 |
| Item Weight (lbs) | 0.17 |
| Cable Length | 3 feet |
| LED Indicators | Power |
| Downstream Port Count | 4 |
| Chip Model | VL817-Q7 |
| Input Voltage | 5V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
Reviews (22)
Customer rating
Based on 22 reviews
- 5 stars: 17 reviews
- 4 stars: 2 reviews
- 3 stars: 3 reviews
- 2 stars: 0 reviews
- 1 star: 0 reviews
Write Your Own Review
Quality
5
Great for gaming
Review by
Coy Cypert
Used these to connect to a couple Nintendo switch consoles docked behind TVs. Work great
Quality
5
Heavy duty metal case.
Review by
"Im the guy"
Absolutely awesome for mounting. No issues with running 2 usb drives.
Quality
5
As Described
Review by
Amazon Customer
Compact, as described. The power supply isn't necessary for all situations.
Quality
5
AS DESCRIBED ON TIME THANKS
Review by
Wayne E. Benson
AS DESCRIBED ON TIME THANKS
Quality
5
As Described
Review by
Ronald M. Coker
Compact, as described. The power supply isn't necessary for all situations.
Quality
4
Decent built quality, way too bright leds.
Review by
Mark D Ormond
Works fine, but a few points...It can only be wall mounted one direction due to the mounting holes only have the divots in one direction, with the cables exiting left.The included usb cable is very short, maybe 3 feet or so.They included bright blue leds next to every port that are always on.. It was like a flashlight until I opened the unit and covered the leds.
Quality
5
Great desk solution
Review by
Chris M. Wollesen
Mounted under my desk to help expand reach of usb3 ports, wonderful addition to mu standing desk setup
Quality
3
Why are you blue?
Review by
Alpacachu
We really need to federally ban blue LEDS for consumer products as status lights. This device will fill the ENTIRE room with blue light. I recommend opening it up and removing or painting over or covering the LEDS of this product if you intend to use this in a room you sleep in.
Quality
5
Muy buen producto
Review by
Muy buen equipo, recibí lo esperado y funciona perfectamente gracias
Genial
Quality
3
A disappointing discovery
Review by
Dan Meuse
For context, I am a mechatronics engineering student with a singificant amount of experience with DIY electronics projects. I bought this to serve as an internal powered USB hub for a 3d printer I'm designing and making from scratch. To prep it for installation, i had planned to swap out the barrel jack for two wires soldered direct to the PCB to save some space [warranties fear me]. When I disassembled the hub, I noticed that the ground pins on all 5 USB ports had far less solder than ideal, and many of the data pins also seemed a bit "malnourished" themselves, albeit to a lesser degree. When connecting components to PCBs via through holes, it is highly unusual to leave enough of a gap that you can still see through the board when finished. When reading other reviews, I noticed many of them mentioned issues with long term reliability or durability, and I suspect my discovery is the main cause. It's a real shame, because the build quality of the housing is otherwise very nice. I feel the need to clarify I can't yet corroborate these complaints, as I have yet to put my USB hub to the test long term. Luckily, this should be cheap and easy for the manufacturer to correct if they read my review. While this isn't a big deal for me to fix, I suspect it would be a susbtantial inconvenience for most consumers.
