7-Port USB 3.2 Gen 1 Charging and SuperSpeed Mountable Data Hub

23 Reviews Add Your Review

$38.49

7-Port USB 3.2 Gen 1 Hub for Charging and Data connectivity, USBGear's USBG-BREC307 is a USB 3.2 Gen 1 7-Port Hub that mountable to any flat secure surface. The hub's USB 3.0 Super-Speed for streaming information or other data allows for fast data transfer.

Availability: In stock

Model Number: USBG-BREC307

Documentation & Downloads

7-Port USB 3.2 Gen 1 Charging and SuperSpeed Mountable Data Hub

$38.49

Details

7-Port USB 3.2 Gen 1 Hub for normal Charging and Data

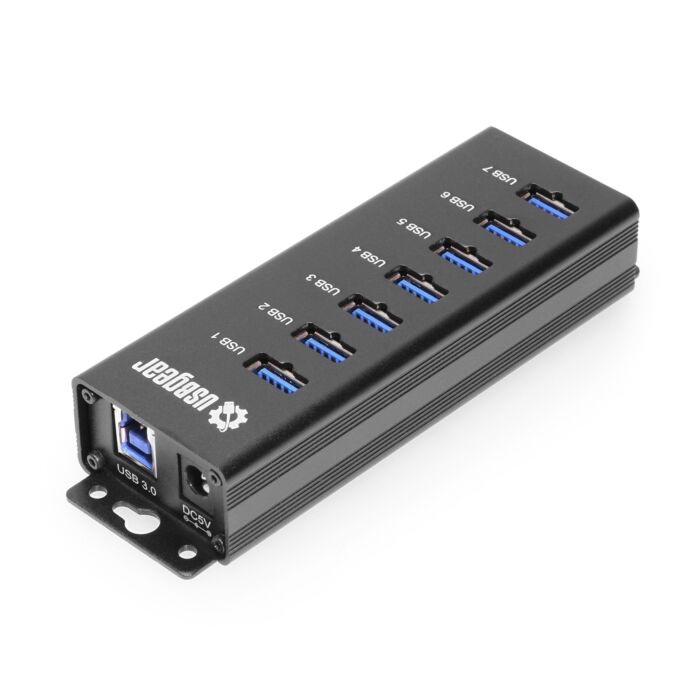

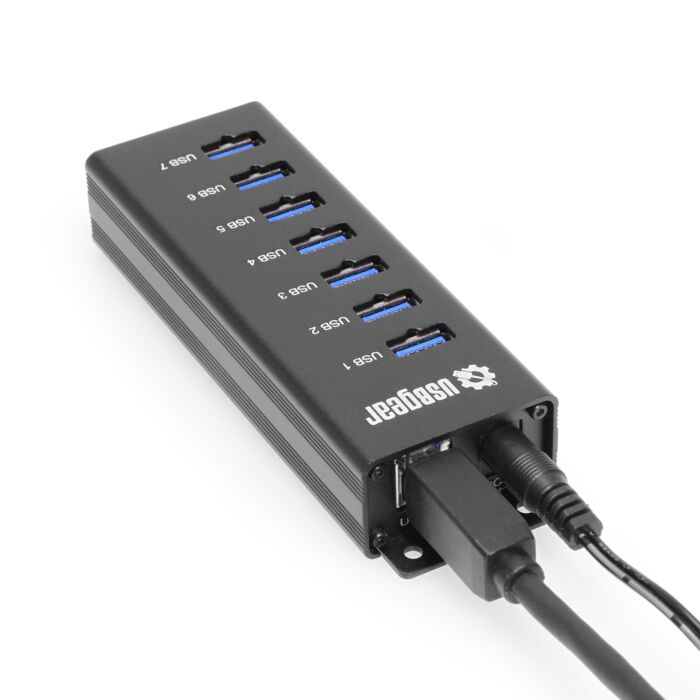

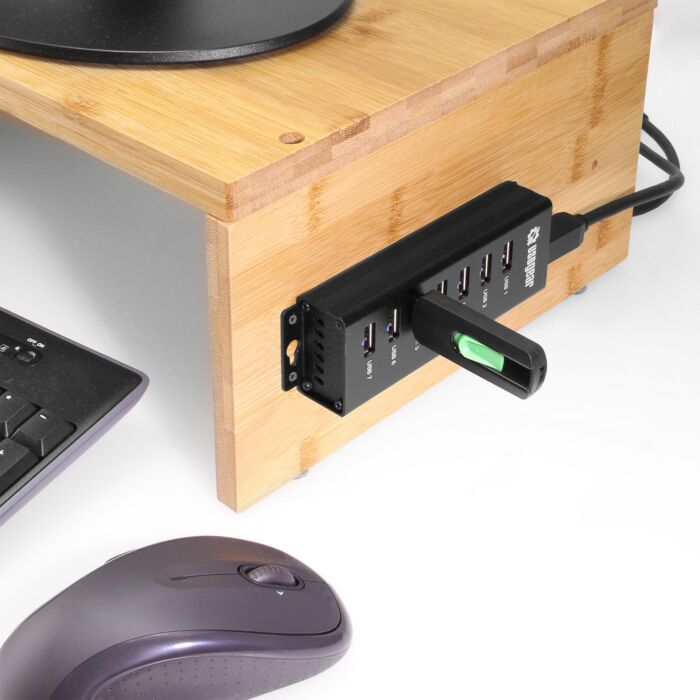

USBGear's USBG-BREC307 is a USB 3.2 Gen 1 7-Port Hub that mountable to any flat secure surface. The hub's 5Gbps data transfer rates follow the standard for USB 3.2 Gen 1 SuperSpeed for streaming information or other data. The 7-Port USB 3.2 Gen 1 hub is easily transported with its small form factor design or can be placed in a stationary position by wall or table top mounting.

The USB 3.2 Gen 1 7-Port hub chassis is a heavy duty extruded aluminum with 7 USB 3.2 Gen 1 ports and mounting flanges on either end where movement isn't an option. The hub follows Battery Charging specifications 1.2 distributing 900mA* to each port for normal charging, it is designed for excellent heat distribution while in operation in various environments transferring data at USB 3.2 Gen 1 speeds. The USBG-BREC307 hub is also backward compatible with specifications of USB 2.0 High Speed or, USB 1.1 Low Speed for use with older devices.

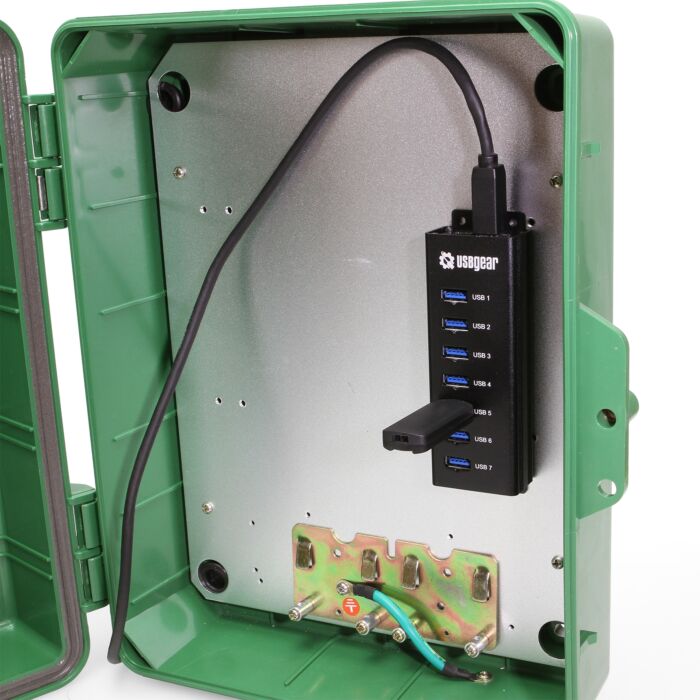

Suggested USB 3.2 Gen 1 hub applications may include: Industrial, Medical, Education, Business, Laboratory, and Gaming.

Power Output Specifications:

Per-Port Output: Up to 900mA @ 5V
Total Power Budget: 20W (shared across all ports)

⚠️ *Note: While each port can provide up to 900mA individually, the total available power for the device is limited to 20 watts. Actual available current per port will vary depending on the total number of connected devices and their power draw.

USBG-BREC307 Features

Adds 7 USB 3.2 Gen 1 ports via its included Type-A to Type-B Cable
Bus-Powered with Limit current protection.
Backward compatible with USB 2.0/1.1
Supports SuperSpeed USB 3.2 Gen 1 over each port with transfer rates up to 5Gbps.
Includes a charging function to power each port up to 900mA*, enough for normal charging.
Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
Support included for Plug-and-Play and hot swapping. No driver installation needed.
Dimensions in Inches: 4.625in (L) x 1.691in(W) x .974in(H) with ears 5.241in(L)
Dimensions in MM: 117.47mm (L) x 42.95mm(W) x 24.73mm(H) with ears 133.12mm

OS Support:

Windows 7, 8, 10, Windows 11
Linux
Mac OS 10.X

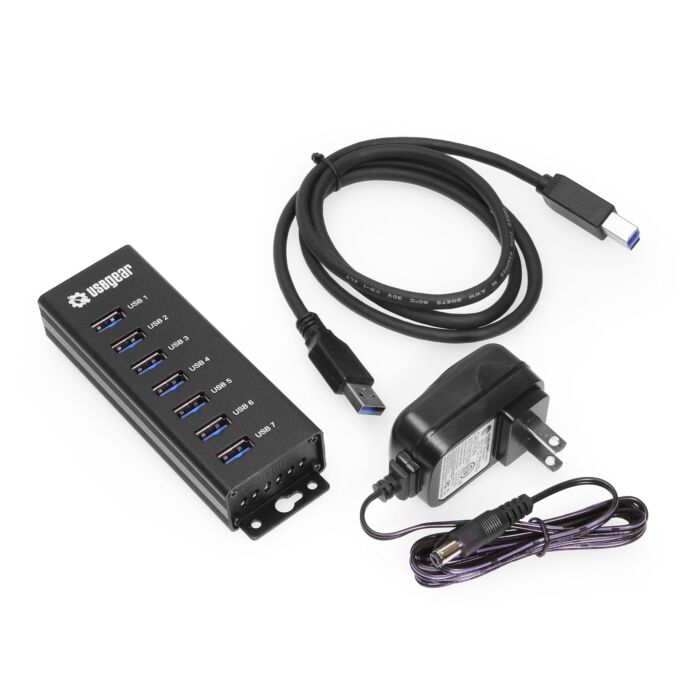

Package Contents

7-Port USB 3.2 Gen 1 Compact Hub
Power Adapter
3ft USB 3.2 Gen 1 Type-A Male to Type-B Male Cable

Technical Specifications

UPC	736983901477
Country of Origin	China
Manufacturer	USBGear
Warranty	One Year
Item Length (in)	4.62
Item Width (in)	1.69
Item Height (in)	0.97
Item Weight (lbs)	0.24
Cable Length	3 feet
LED Indicators	Power
Downstream Port Count	7
Chip Model	GL3520, VL817-Q7
Input Voltage	5V DC
OS Support / Compatibility	OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS
Max Data Transfer Rate	5Gbps
Downstream Port Type	Type A
Upstream Port Count	1
Upstream Port Type	USB 3.2 Gen 1 Type B

Reviews (23)

Based on 23 reviews

5 stars: 15 reviews
4 stars: 3 reviews
3 stars: 3 reviews
2 stars: 2 reviews
1 star: 0 reviews

Write a Review

Write Your Own Review

You're reviewing: 7-Port USB 3.2 Gen 1 Charging and SuperSpeed Mountable Data Hub

Your Rating

Nickname

Summary

Review

Quality

Very good

Review by Dan

Very good

Quality

Works great as a remote hub on an adjustable desk.

Review by C. Locke

I installed this to the bottom of an adjustable height desk to run USB3.0 from my computer. The 3' cord provided was not quite long enough to work so ordered a 6' cord. I have a couple of devices connected to it under the desk and added a dual-port extension to bring two positions to the top of the desk. So far it is working out. The desktop devices and the extension ports are working well. I needed a device with the mounting tabs to install it on the underside of the desktop.

Quality

Works perfectly

Review by Spuwho

Meets my needs perfectly for a mountable desktop USB hub for various devices.

Quality

Wow. Simply but works

Review by Larry

Excellent price for such a small item. Works very well with 3.0 USB

Quality

NOT USB 3.2 gen 1

Review by Ryan

It's very well made. nice solid metal build with a small footprint. BUT It says USB 3.0 Right on the box....... The listing says USB 3.2 gen 1. They lied.

Quality

Works well enough. , but not a true 7 port hub

Review by Steve G.

The good:they have enough power to run things off of, and overall it works when plugged directly into my desktop. The Bad:t is not actually a true 7 port USB hub, but 2 4 port hubs daisy chained internally, which means that in some configurations (laptop dock & KVM, you will run into a situation where half the ports cannot be used due to limits on how many layers of USB hubs you can have

Quality

Rugged and easy to mount

Review by Sqeaky

I bought these for a joystick assembly. I used some 20x20 aluminum to mount a pair of high ending joysticks onto a thing I could use to mount and remove them from my desk easily. This lets mounted easily and accepts USB3 and power so minimized my cable mess.It does get warm, but not alarmingingly. Has given me zero issues. Works on Linux with no special drivers.

Quality

Not suitable for musical applications

Review by FakeName Jones

This device introduces quite a bit of noise at multiple of 8kHz due to USB microframe packet noise. Basically they used a cheap internal power supply that fluctuates under the repeated 8kHz load of handling microframe packets, which will show up in a lot of musical equipment connected to this hub.

Quality

Put your USB connection where you want it.

Review by Mr.Wadester

This is the best way to deal with all the USB connected devices. Sure there are a couple convenient ports on the front of your machine but they get used up quickly. This one is easy to mount and offers full speed and power, much better than unplugging and plugging USB cables. Make it easy on yourself.

Quality

Dimensions for the holes and panel mounting

Review by W. Ashurst

Bought this specifically to mount it to a plate and attach to some 80/20 framing. It would have been helpful to have the correct dimensions for the mounting holes. I looked up on their website (after I had already measured, thankfully) and the dimensions on the item did not quite match their published specifications (off by about 1 mm). FWIW, the four smaller (#6 or 3mm) mounting holes were 25 mm apart on the short side and 123 mm apart on the long side. The hub worked well with a Raspberry Pi 4, though.
