USB Industrial 2-Port Serial Adapter RS-232 w/FTDI Chipset, RX/TX LED Indicators, DIN Rail & Surface Mounting Brackets
2-port USB to Serial 9 Pin RS-232 Industrial adapter with Surface or Din Rail mounting Configuration. Surface Visible Power and Activity LED's for easy diagnostic review. Utilizes FT2232H FTDI Chip set Automatically configures the additional COM ports Plug and Play allows easy installation Perfect for connecting serial modems, bar code scanners, CNC routers, and others Rugged metal industrial design. Supports Windows 11, 10, 8, 7, Linux, and macOS.
Model Number: GM-FTDI2X-M
Documentation & Downloads
USB Industrial 2-Port Serial Adapter RS-232 w/FTDI Chipset, RX/TX LED Indicators, DIN Rail & Surface Mounting Brackets
$59.99
Details
If you need to run a Windows 11 serial device(s) with a limited number of serial ports and not many options, it can be frustrating. The Gearmo 2 Port Serial Hub with Power RX and TX LED is a great solution. This RS232 2-port hub utilizes a high performance FTDI Chip that easily adds 2 standard serial ports to your desktop, laptop or other mobile device and fully supports up to Windows 11.
The converter’s serial outputs are automatically configured as additional COM ports. The USB 2.0 to Serial dual RS232 port converter cable is compatible with most GPS and PDA devices such as Garmin, Magellan, or Palm and peripherals in your office such as modems, printers, scanners, and digital cameras. This serial converter cable has built-in protection against static electricity and surges up to 15KV giving you reliable data transfers and protects the converter and your equipment from damage due to over voltages.
USB Plug and Play allows easy installation and requires no IRQ, DMA, or I/O port resources which means more devices can be attached to your system without the hassles of device and resource conflicts. The 2 Port USB 2.0 to Serial RS-232 converter is suitable for general office, commercial and industrial use. With a FTDI and SIPEX CHIP Powered by USB, the device does not require a power outlet. Once connected, the adapter retains its assigned serial COM port values, allowing the same values to automatically be re-assigned to the ports provided by the adapter in the event that it is disconnected, then re-connected to the host computer.
Additional Features
- Easy Plug and Play installation
- USB interface: standard Type A female
- Automatic handshake support
- Baud rates up to 921.600bps
- No power supply needed
- Dual 16 Byte hardware data buffer (up/down stream)
- Cable Length: 6 feet
- Windows 11 supported
- Approvals: CE, FCC, REACH, RoHS
Supported OS :
- Windows XP, 2000, 2003, CE, Vista, 7, 8, 10, and 11
- Linux
- Mac OS 10.X
Item Dimensions without Flanges :
77.74mm x 57.3mm x 25.2mm

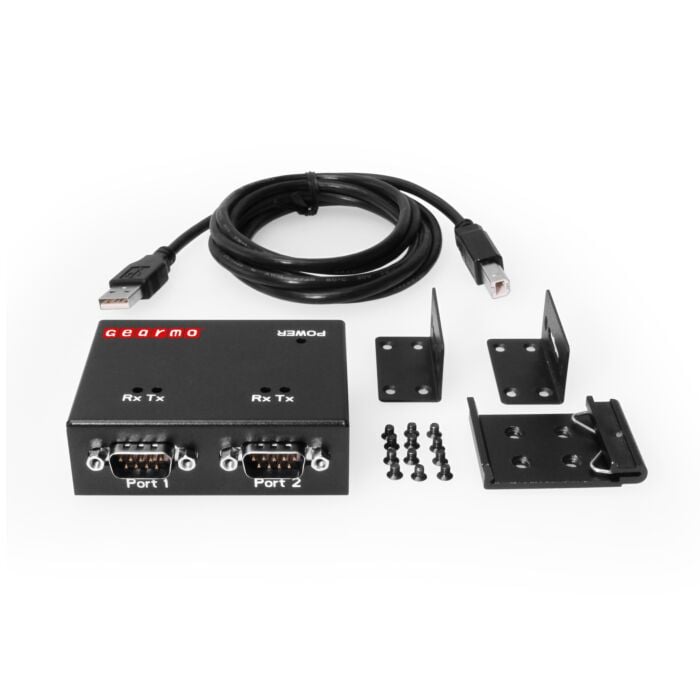

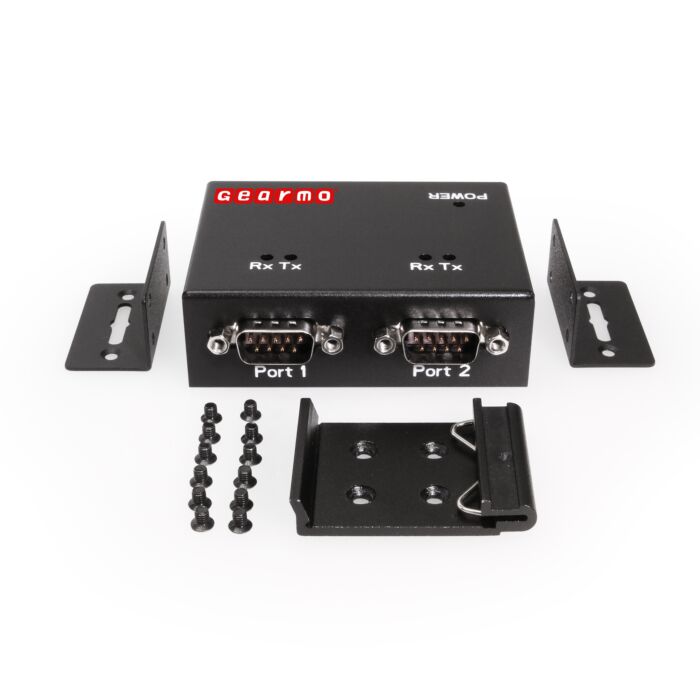

Package Contents:
- Surface Mounting Flanges
- Screw Pack
Technical Specifications
| UPC | 045079161504 |
|---|---|
| Manufacturer | Gearmo |
| Warranty | One Year |
| Country of Origin | China |
| Item Length (in) | 3.06 |
| Item Width (in) | 2.26 |
| Item Height (in) | 0.99 |
| Item Weight (lbs) | 0.3625 |
| Input Voltage | 9 ~ 48V DC |
| LED Indicators | Power, TX/RX |
| Connector(s) | DB9 Male w/ Nuts, USB 2.0 Type B Female |
| Downstream Port Count | 2 |
| Serial Modes | RS232 |
| Chip Model | FTDI FT2232H |
| OS Support / Compatibility | Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Downstream Port Type | Male DB9 /W Nuts |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type A Fixed Cable |
