USB C Hub 4 Port USB 3.1 Gen1 SuperSpeed USB C Upstream
$98.99
New USB C Hub by CoolGear compliant with USB 3.1 Gen1 specifications using 1 USB C upstream port and 1 USB C Downstream port in its 4 total ports configuration. Includes USB-A to C cabled for the host connection for 5Gbps data transfers and 2-wire connector for self power.
Availability: In stock
Model Number
CG-4PU31C2P

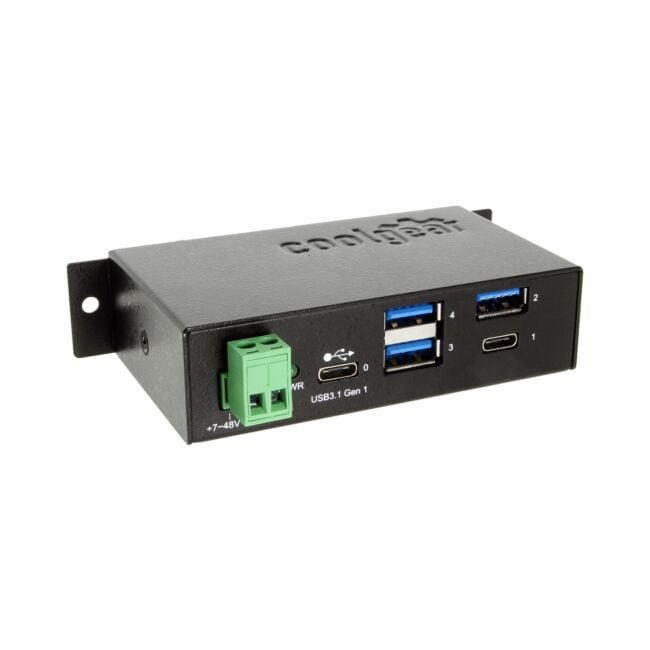

Mini USB C 4 Port Hub with 1 USB C Upstream Port and 1 USB C Downstream Port
CoolGear's new USB C hub for industrial applications is compact and mountable with 4 ports comprising of (3) USB-A downstream ports, (1) USB C downstream port, and (1) USB C upstream port to your computer.
The USB C hub is a Gen1 hub using USB 3.1 to support Super-Speed 5Gbps data transmission speeds and takes advantage of the reversible type-C port in both directions. This hub is self powered with a 2-pin terminal block connector to supply power input of +7 ~ 48V DC sold separately.
USB C Hub Features
- Compliant with USB 3.1 Gen 1 Specifications
- Ruggedly constructed DIN Rail mountable metal chassis
- Can be wall mounted via attached flange
- Provides 4 (1 USB-C and 3 USB-A) downstream facing USB 3.1 ports.
- Uses included USB 3.1 A to C cable for upstream data.
- Supports 5Gbps (super-speed), 480Mbps (High-Speed), 12Mbps (Full-Speed), and 1.5Mbps (low-speed) speeds
- Supports 15KV ESD Surge Protection
- Multi Transaction translators (TT) per hub
- Supports USB battery charging: CDP and DCP modes
Package Contents
- 1x USB C Gen1 4 port Hub
- 1x 3ft. USB 3.1 A to C cable
- 1x DIN Rail clip and screws
- User manual
*Surface Mounting screws not included
| Model Number | CG-4PU31C2P |
|---|---|
| UPC | 045079158405 |
| Color | Black |
| Manufacturer | Coolgear |
| Warranty | 1 Year |
| OS Compatibility | OS independent - No software or drivers required |
| Item Length (in) | 3.73 |
| Item Width (in) | 2.25 |
| Item Height (in) | 1.03 |
| Item Weight (lbs) | 0.413 |
| Country of Origin | Taiwan |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2G1 / 3.0 Type-C Female |
| Downstream Port Count | 4 |
| Downstream Port Type | 1x Type C USB 3.2 G1 / 3.0, 3x Type A USB 3.2 G1 / 3.0 |
| Max Data Transfer Rate | 5 Gbps |
| LED Indicators | Power |
| Input Voltage | 7 ~ 48V DC |
| ESD Protection | ±15kV (air), ±8kV (contact) |
| Chip Model | GL3523 |
