7-Port USB 3.2 Gen 2 2 Type-C 5 Type-A Industrial Surface & DIN-Rail Mount Hub w/ ESD Surge Protection
Extensive Connections: Expand your host system’s peripheral capabilities with 2 USB Type-C ports and 5 additional USB Type-A ports.
Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.
Flexible Power: Power your way with a wide input voltage range of 9 ~30V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
Upstream: USB Type-C
Downstream: 2x USB Type-C, 5 USB Type-A
Power Input: 3-Pin Terminal Block, DC Barrel
Mounting Styles: Surface, Wall, and DIN-Rail

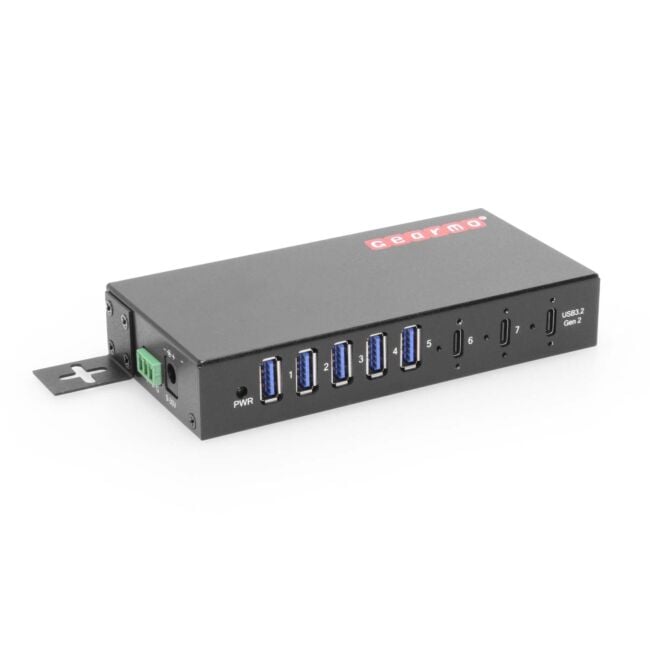

The GM-HU37CA-DW Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 2 downstream USB Type-C ports and 5 downstream USB Type-A port. All ports, both downstream and upstream are conveniently located on the front facing panel along with the Terminal and barrel power connections. The GM-HU37CA-DW USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 and Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 2 3.2 Gen 2 compliant USB Type-C ports & 5 3.2 Gen 1 USB Type-A port
- Output: 2x USB-C with each 2.4A, 4x USB-A with each 1A, 1x USB-A with 2.4A, total 56W max
- Rugged metal chassis with surface & DIN Rail mount support
- 9~30V DC power input with an included DC Barrel power supply
- LED indicators for each port to show connection confirmation
- Screw-locking ports
- Upstream USB Type-C port
- 15kV ESD protection for all USB ports
Package Contents:
- Industrial 7-Port USB 3.2 Gen 2 Type-C & A Industrial Hub
- User Manual
- Power Adapter with DC Barrel Connector
- USB Type-C to Type-C Screw-Locking Cable
- DIN-Rail & Wall Mounting Kit
- 3-Pin Terminal Block
- Screw Package
| Model Number | GM-HU37CA-DW |
|---|---|
| UPC | 045079164116 |
| Color | Black |
| Manufacturer | Gearmo |
| Warranty | 1 Year |
| OS Compatibility | OS independent - No software or drivers required |
| Item Length (in) | 5.5 |
| Item Width (in) | 2.75 |
| Item Height (in) | 1 |
| Item Weight (lbs) | 0.64375 |
| Country of Origin | Taiwan |
| Material | Steel |
| Short Description | Extensive Connections: Expand your host system’s peripheral capabilities with 2 USB Type-C ports and 5 additional USB Type-A ports. Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments. Flexible Power: Power your way with a wide input voltage range of 9 ~30V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block. Upstream: USB Type-C Downstream: 2x USB Type-C, 5 USB Type-A Power Input: 3-Pin Terminal Block, DC Barrel Mounting Styles: Surface, Wall, and DIN-Rail
|
| Upstream Port Type | Type C |
| Downstream Port Count | 7 |
| Downstream Port Type | 2x Type C USB 3.2 G2, 5x Type A USB 3.2 G2 |
| Max Data Transfer Rate | 10 Gbps |
| LED Indicators | Power |
| Input Voltage | 9 ~ 30V DC |
| Connector(s) | USB 3.2/3.x Type A Female, USB 3.2/3.x Screw Lock Type C Female |
| Chip Model | VL817-Q7S, VL822-Q7 |
