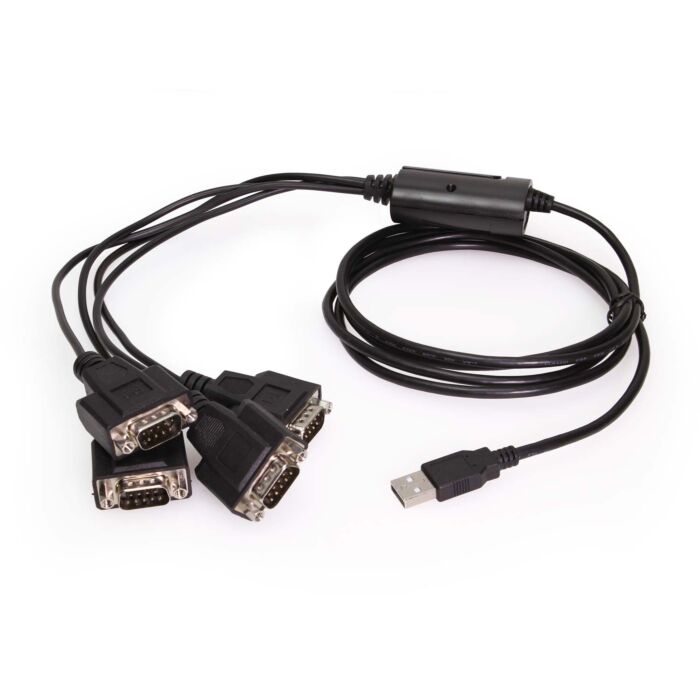

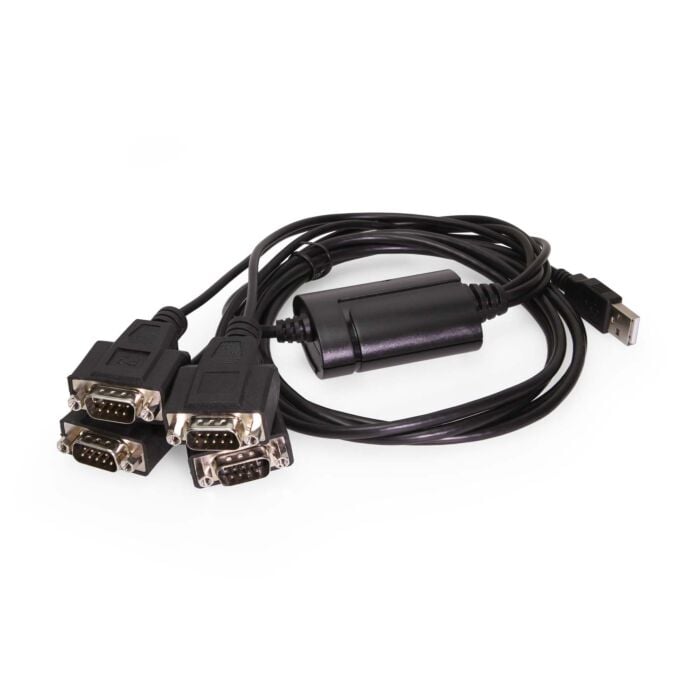

USB to Serial 4-Port RS232 FTDI Adapter Cable

This part number is discontinued. Please see PN# USB-4X232FTDI as a direct replacement.

The CG-4X232FTDI 4-Port USB to RS232 Adapter FTDI Cable is 7ft in length and engineered for retail POS (Point Of Sale) terminals at sales counters such as those in banks and grocery stores.

They are essentially a PC in a custom case attached to printers, scanners and displays ready for Data. Some of the peripherals are integrated into the POS terminal, such as the keyboard, cash drawer, simple pole display and receipt printer. Others are external to the terminal such as scales, large flat panel pole displays, credit card readers, and bar code scanners. This serial adapter is supported by Windows 10.

FTDI Chip Inside

This PRO Grade 4-Port USB to RS232 Adapter is build around FT4232H from FTDI Semiconductors which is the best and most reliable Quad Serial to USB processors on the market, it also uses ZT232E RS232 transceiver from ZyWyn USA. USB cable is 6ft. total length with port identification marks on each of the DB-9 Male ends.

USB to Serial Interface

The upstream (USB type B connector) port supports USB 2.0 High-Speed mode to prevent from the bottleneck when all serial ports are transferring data simultaneously. The CG-4X232FTDI 4-Port USB to RS232 Adapter Cable provides the scalability to quickly adapt to new USB technologies. Multiple modules can be added to a single USB interface allowing you to add RS232 connectivity as needed. Complete product line offer many choices help you to expand and make your network grow with your requirements.

With the USB Plug-and-Play feature, simply plug in, follow the instructions of Install Wizard, then you are done. You don’t have to deal with Card Slots, I/O address, IRQ jumpers, DMA and others when you are connecting the devices. The System will recognize the device and install the drivers automatically. The CG-4X232FTDI is an ideal solution for your expanding applications.

Features

• 7ft. cable length
• Provides 4 RS232 Serial Ports over USB 2.0 Port
• USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible

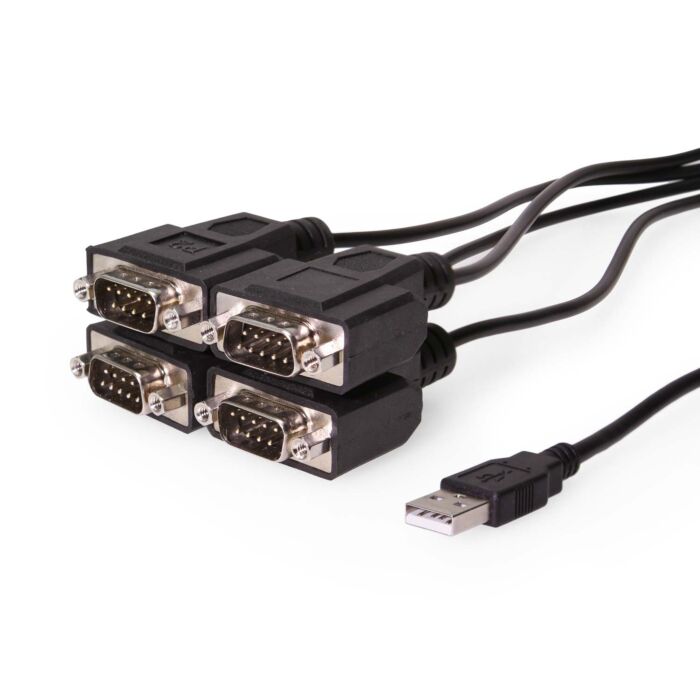

• Provides 4 DB9 Connectors with Octopus Cable

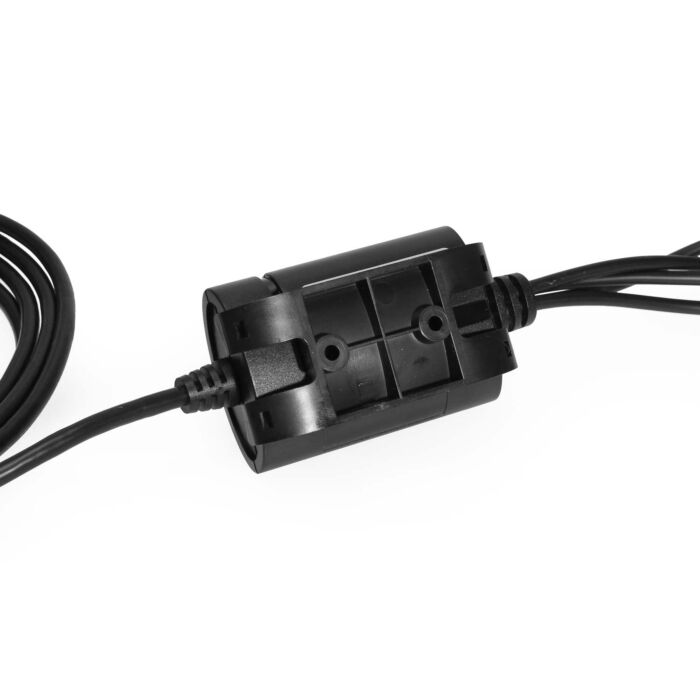

• Supports Wall Mounting Kit and Optional DIN RAIL Clips
• Baud Rate up to 921.6Kbps
• Supports 7,8 Data Bits
• Odd, Even, Mark, Space, or None parity mode
• Supports 1, or 2 Stop Bits
• Powered by USB Bus Power, no AC Adapter Required
• Supported by Windows 10, also supported by XP, 2000, 2003, CE, Vista, Windows 7, 8, Mac OS 10.X and Linux.

USB 2.0 Port

USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible, backward compatible with USB 1.0 and USB 1.1, the USB connector equips the Screw Lock Mechanism

Serial Ports

• Supports 4 DB9-Male UART Serial ports
• Data Rate up to 921.6Kbps
• Supports 7,8 Data Bits
• Odd, Even, Mark, Space, or None parity mode
• Supports 1 or 2 Stop Bits

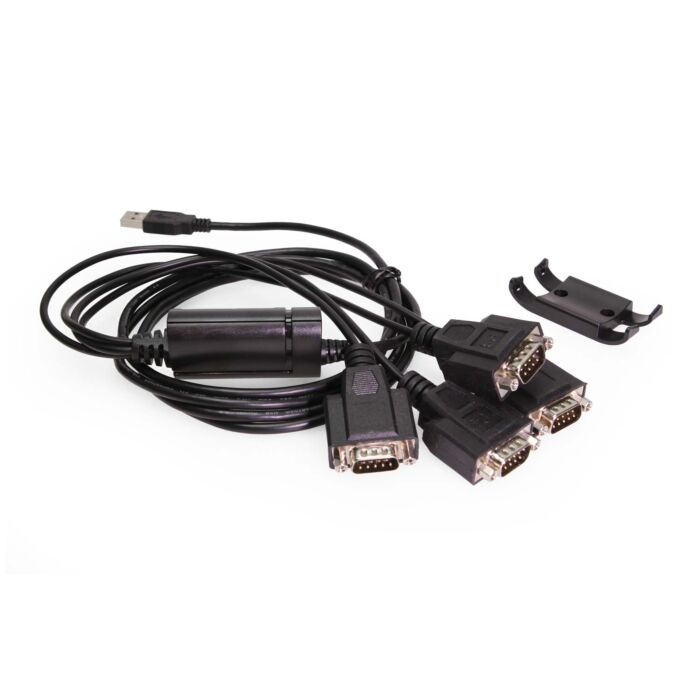

• Supports Wall Mounting Kit and Optional DIN RAIL Mounting Clips

Environmental Info:

• Operating Temp.: 0 to 55C (32 to 131F)
• Storage Temp: -20 to 85C (-4 to 185F)
• Operating Humidity: 5 to 95% RH

Form Factor

• •2.36”(L)x1.66”(W)x0.98”(H) (6.00 x 4.24 x 2.51 cm)
