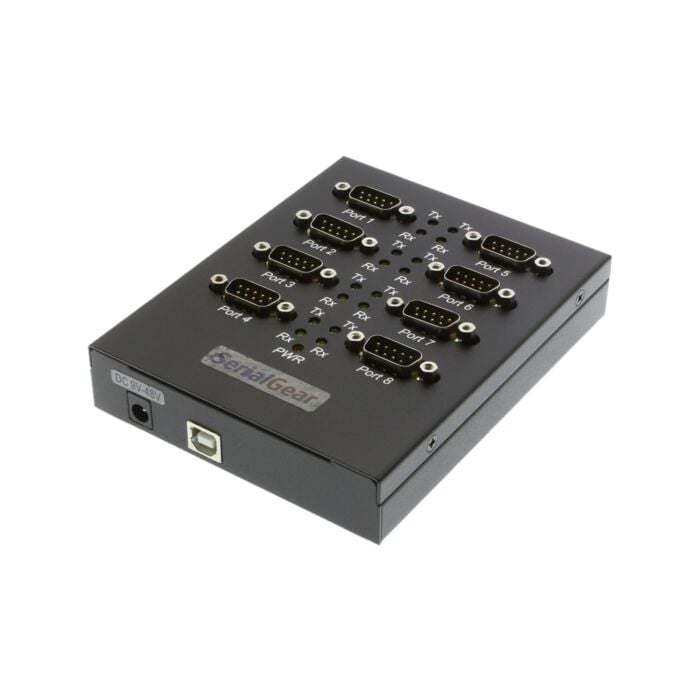

USB USB 2.0 Serial high speed adapter box industrial 8-port RS-232 FTDI
RS-232 | 128 Bytes Receive | 384 Bytes Transmit

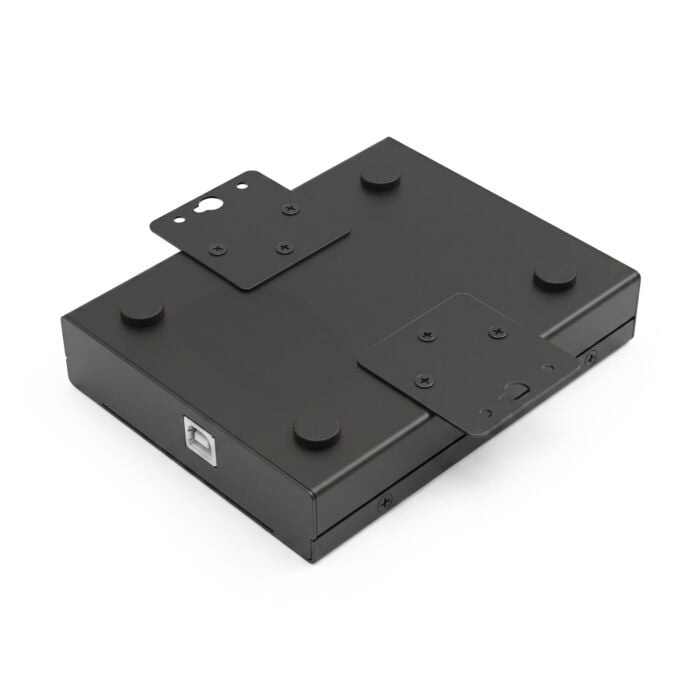

- Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the serial adapter hub is perfect for installations in labs, warehouses, or heavy machinery.
- Safe Industrial Connections: Designed for use with Bar Code Scanners, Time Clocks, Label Printers, Point of Sale Terminals, Receipt Printers, and more the USB to Serial Adapter offers 15kV surge protection for connected devices.
- Expand Your Serial Capabilities: Connect 8 legacy 9-pin serial device through a USB-A port to add legacy functionality to newer technologies with no serial port connections.
- COM Retention: COM Ports are fully configurable, and after reboots, port assignments are preserved.
- USB Power: Power is drawn from a USB connection, no bulky power supply or power outlet is required.
- Upstream: 1 USB port, Type B Female Connector
- Downstream: 8 Male DB9, w/ nuts
- LEDs: Power, TX / RX
Introduction:
RoHS Compliant PRO 8 Port USB Serial Adapter with Com Port Retention Technology and High-Speed 920K Support.
Supports Windows 11, 10, 8, 7 and Vista (32 and 64-Bit)
Professional Grade Solution for Legacy or Industrial serial RS-232 device connectivity to a Laptop or Desktop Computer. This Adapter Retains all COM port setting assigned by the operating system and or modified by user. This is very convenient if the adapter is disconnected and reconnected at a later time to another USB port on the same computer.
New Industrial Metal Case, High Speed USB 2.0 Serial Adapter line gives your laptop or workstation the ability to communicate between a USB (Universal Serial Bus) port and up to eight RS-232 Ports.
The USB2-8COM-M USB Octal Serial Adapter is designed to make serial port expansion quick and simple. Connecting to a USB port on your computer or USB hub, the USB Quad Serial Adapter instantly adds eight RS-232 serial communication ports to your system. By taking advantage of the USB bus, the USB Octal Serial Adapter makes it easier than ever to add serial ports and serial devices to your system with easy plug-and-play and hot plug features. Plugging the USB Octal Serial Adapter to the USB port, the adapter is automatically detected and installed. There are no IRQ & COM port conflicts, since the ports don't require any additional IRQ, DMA, memory as resources on the system.
The USB 2.0 Octal Serial Adapter is provided with a switching power adapter. The USB2.0 Octal Serial Adapter provides instant connectivity with modems, ISDN TAs, PDAs, handheld & pocket PCs, digital cameras, POS, serial printers. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring high speed RS-232 serial communication ports.
Features:
Model No: USB2-8COM-M Adds eight RS-232 serial ports by connecting to USB port Installed as standard Windows COM ports Full RS-232 modem control signals
- RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
- Serial ports speed up to 921.6K bps
- Each port is protected with 15KV ESD protection
- High speed USB2.0 supported (up to 480 Mbps)
- USB cable of 0.9 meter included
- Self-powered
- Switching power adapter of 5V, 1.6A is included
- Easy plug & play installation and RS-232 device connection
- Works with USB 1.1 & 2.0 host port
- SECC sheet metal chassis with DIN rail bracket
- Master Power LED and RX and TX LEDs Per Port
Dimensions:
- 103 mm x 130 mm x 22 mm
- 133 mm x 130 mm x 22 mm (with DIN rail bracket)
Eight DB9 male connectors COM Port Number can be changed to COM1 to COM8 to support Hyper-Terminal, putty, Kitty or any other COM port number required
***USB Serial Adapters are designed to make serial port expansion quick and simple. Connecting to a USB port on your computer or USB hub, the USB Serial Adapters instantly add serial communication ports to your system. By taking advantage of the USB bus, the USB Serial Adapter makes it easier than ever to add serial ports and serial devices to your system with easy plug-and-play and hot plug features. Plugging the USB Serial Adapter to the USB port, the adapter is automatically detected. There are no IRQ & COM port conflicts since the port doesn't require any additional IRQ, DMA, or memory as resources on the system.
Item Uses FTDI Chip USB 2.0 to Serial RS-232 RoHS Compliant FT2232D
Zywyn Corporation RS232 High Data Rate 1,000kbps Transceiver
ZT213LFEA 5V RS232 Transceiver 4D/5R, S/D, Ind Temp 28 SSOP 45 15
ZT230LF Series , 5V RS232 High Data Rate 1,000kbps, 15kV ESD, Green Package (Pb-free + RoHS)
USB 2.0 High-Speed Tetra Hub Controller Inside
All Parts FCC/CE RoHS and UL Listed Power Adapter
Driver CD: Drivers are available which allow FTDI devices to work with the following operating systems:
- Windows 11
- Windows 10
- Windows 8
- Windows 7
- Linux
- Mac OS X

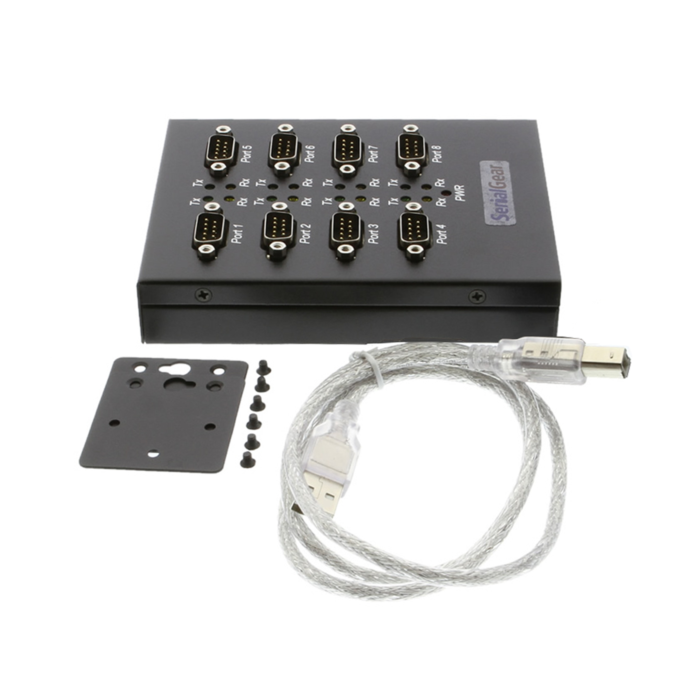

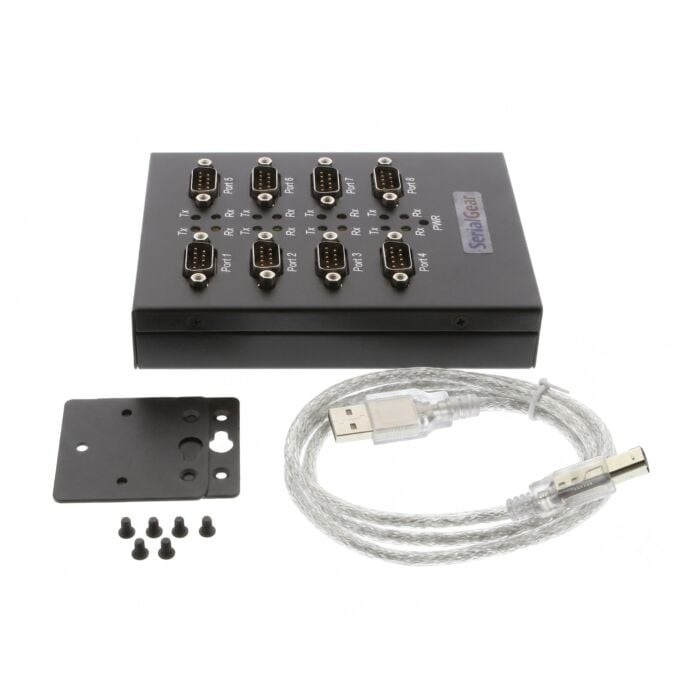

Package Contents:
-
8-Port RS-232 Adapter
- 3ft. USB 2.0 Cable Provided
- Optional Moounting Flanges
- Screw Pack
- Driver CD
- User Guide
Model Number | USB2-8COM-M |
---|---|
UPC | 729440690793 |
Color | Black |
Manufacturer | Coolgear |
Warranty | 1 Year |
OS Compatibility | Linux, OSX 10, Windows 11, Windows 10, Windows 8 |
Country of Origin | Taiwan |
Material | Steel |
Upstream Port Count | 1 |
Upstream Port Type | USB 2.0 Type-B Female |
Downstream Port Count | 8 |
Downstream Port Type | Male DB9 /W Nuts |
Input Voltage | 9 ~ 48V DC |
ESD Protection | 15KV |
LED Indicators | Power, TX/RX |
Serial Modes | RS232 |
Chip Model | FTDI FT4232HL |
