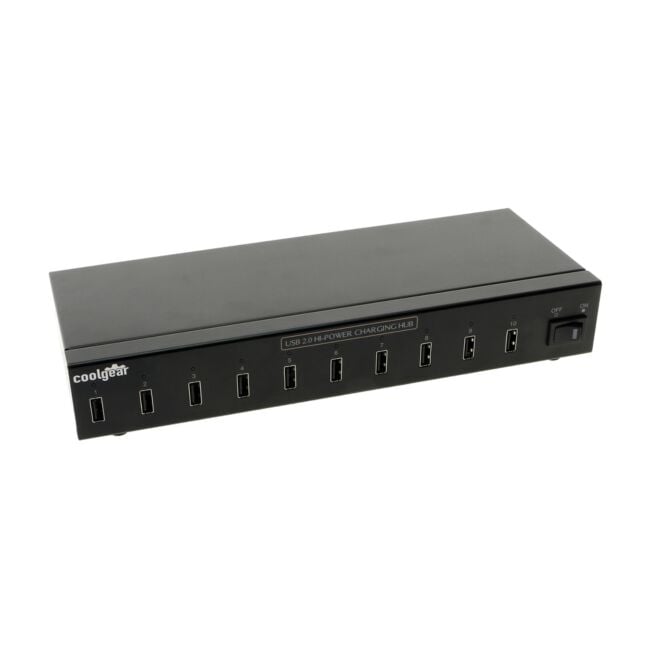

USB Charging Hub Hi-Power 10-Port USB Charger Hub 2.4A per port
$305.49
Regular Price
Perfect for charge and sync functions with iPads, iPhones, iPod, or other mobile devices for everyday use in business, education, and organizations. This is hi-power USB charging hub with 3 levels of LED indicator colors and is mountable.
Availability:
On Backorder
Model Number: U2CHGRHUB10
Documentation & Downloads
USB Charging Hub Hi-Power 10-Port USB Charger Hub 2.4A per port
$305.49
Details
USB 2.0 Hub / Charger
The 10-Port USB Charging hub is a solution for quick charging or synchronizing up to 10 iPads, iPhones iPods and USB charging devices operating simultaneously, comes with power adapter, USB cable, and rack mounting brackets and screws.
The USB charger is a combination USB 2.0 hub and charger and a perfect tool to effectively perform Sync/Charge Mode switching. It’s ideal to be used as a large capacity USB station working in-house that enables charging and syncing at any time.
Any School, businesses, or organization can take advantage of this charging hub as the go to tool for daily charge/sync functions for the classroom, conference room, or presenter. The USB charging hub incorporates an on / off switch and 3 color LED indication for fully charged, charging in progress, and syncing.
USB Charging Hub Features
- Compliant with USB Battery Charging Spec 1.2
- Enables to provide up to 1.5A at Sync (CDP mode) or 2.4A at Charge (DCP mode) output current on each port.
- Supports the iOS, Android devices.
- Enables Sync/Charge mode switching upon manually connecting or disconnecting host port.
- If all devices are fully charged at Charge Mode, the unit would cut off the ports LED & power automatically.
- Intelligently detects the power current of each port by the sensing meter with firmware, and enables the port’s LED to illuminate its corresponding color. (Charging in progress: red; Disconnected or Fully charged: green)
- Supports Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on each port.
- Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
- For the High-temp protection, if the unit’s high temperature is over the setting, it would cut off all the output current immediately. At the mean time, the whole LEDs of the 10 ports would be green blinking.
Package Contents
- USB 2.0 hi-power charging hub
- Power supply with power cord
- USB 2.0 A/M to B/M cable
- Mounting brackets with screws
- User manual
Technical Specifications
| UPC | 045079157873 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | USBGear |
| Warranty | One Year |
| Item Length (in) | 10.6 |
| Item Width (in) | 4.11 |
| Item Height (in) | 1.66 |
| Downstream Port Count | 10 |
| Chip Model | FE1.1s - |
| Input Voltage | 24V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV (air), 8kV (contact) |
| Max Data Transfer Rate | 480Mbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 2.0 Type B |
