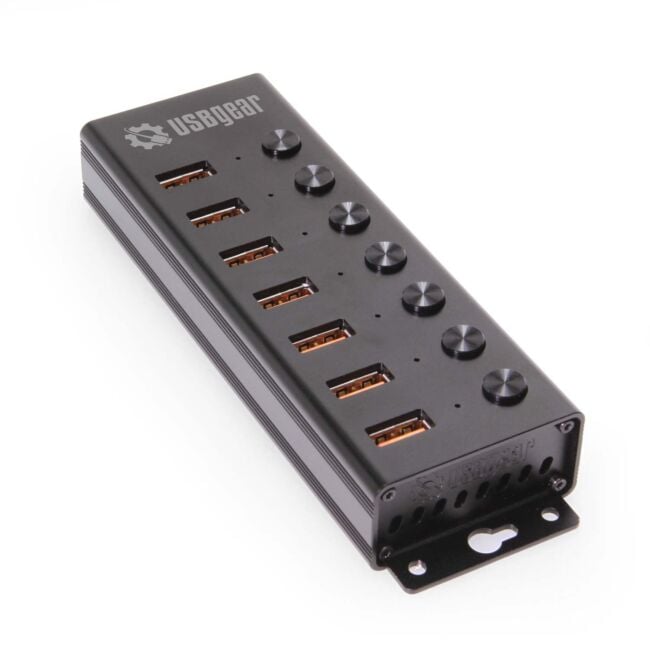

7 Port USB 3.2 Gen 2 Hub with Individual On/Off Switches & 10Gbps Data Speeds
7-Port USB 3.2 Gen 2 Hub for Charging and Data connectivity, USBGear's USBG-BREC307PWS is a USB 3.2 Gen 2 7-Port Hub that mountable to any flat secure surface. The hub's USB 3.2 Gen 2 Super-Speed for streaming information or other data allows for fast data transfer at up to 10Gbps. Control each USB port with individual on and off switches.
Model Number: USBG-BREC307PWS
Documentation & Downloads
7 Port USB 3.2 Gen 2 Hub with Individual On/Off Switches & 10Gbps Data Speeds
$47.49
Details
7-Port USB 3.2 Gen 2 Hub with Individual Port Control
USBGear's USBG-BREC307PWS is a USB 3.2 Gen 2 7-Port Hub that mountable to any flat secure surface. The hub's 10Gbps data transfer rates follow the standard for USB 3.2 Gen 2 SuperSpeed for streaming information or other data. The 7-Port USB 3.2 Gen 2 hub is easily transported with its small form factor design or can be placed in a stationary position by wall or table top mounting.
The USB 3.2 Gen 2 7-Port hub chassis is a heavy duty extruded aluminum with 7 USB 3.2 Gen 2 ports and mounting flanges on either end where movement isn't an option. The hub follows Battery Charging specifications 1.2 distributing 900mA to each port for normal charging, it is designed for excellent heat distribution while in operation in various environments transferring data at USB 3.2 Gen 2 speeds. The USBG-BREC307 hub is also backward compatible with specifications of USB 2.0 High Speed or, USB 1.1 Low Speed for use with older devices.
Suggested USB 3.2 Gen 2 hub applications may include: Industrial, Medical, Education, Business, Laboratory, and Gaming.
USBG-BREC307 Features
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Adds 7 USB 3.2 Gen 2 ports via its included Type-A to Type-B Cable
- Bus-Powered with Limit current protection.
- Backward compatible with USB 2.0/1.1
- Individual port control with individual on/off switches.
- Supports SuperSpeed USB 3.2 Gen 2 over each port with transfer rates up to 10Gbps.
- Includes a charging function to power each port up to 900mA, enough for normal charging.
- Compliant with Fast Charging for international battery charging 1.2 Standard Protocol and Smart Control.
- Support included for Plug-and-Play and hot swapping. No driver installation needed.
OS Support:
- Windows 7, 8, 10, Windows 11
- Linux
- Mac OS 10.X
Package Contents
- 7-Port USB 3.2 Gen 2 Compact Hub
- 12V / 4A DC Barrel Power Adapter
- 3ft USB 3.2 Gen 2 Type-A Male to Type-B Male Cable
Technical Specifications
| UPC | 045079164611 |
|---|---|
| Country of Origin | China |
| Manufacturer | USBGear |
| Warranty | One Year |
| Item Length (in) | 5.50 |
| Item Width (in) | 2.00 |
| Item Height (in) | 1.00 |
| Item Weight (lbs) | 0.325 |
| Cable Length (To Be Deleted*) | 3 feet |
| Connector(s) | DC Barrel, USB 3.2/3.x Type A Female, USB 3.2/3.x Type B Female |
| LED Indicators | Port Status |
| Downstream Port Count | 7 |
| Chip Model | VL822-Q7 |
| Input Voltage | 12V DC |
| OS Support / Compatibility | Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
Reviews (13)
Customer rating
Based on 13 reviews
- 5 stars: 7 reviews
- 4 stars: 3 reviews
- 3 stars: 3 reviews
- 2 stars: 0 reviews
- 1 star: 0 reviews
Write Your Own Review
What I found is that I had so many hard drives plugged in all trying to power up at once it overwhelmed the computer. So now when I power off I also use the switches on the USB hub to power down all hard drives. Then when I power back on I do 1 or 2 drives at a time so it does not overwhelm the USB Bus.
Now everything works perfectly and I love the power switched for each device that you plug in.
I recommend it.
