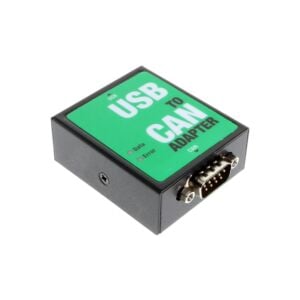

USB to CAN Bus Adapter with Galvanic Isolation in Metal Case

Part # CG-1PMGICAN
$112.49

If you’re using CAN Bus, this USB to CAN Bus adapter is for you. Built small for single port operations, this CAN Bus adapter employs galvanic isolation to catch stay signal noise produced by current. Operates with a DB9 and USB Type-B connector, no additional power source is needed.

Compatibility

USB to CAN Bus Adapter with Galvanic Isolation in Metal Case

Part # CG-1PMGICAN
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$112.49

Compatibility

Small Metal USB to CAN Bus Adapter

The small USB to CAN Bus adapter supports USB 1.1, 2.0, and 3.0 specifications protocols. It operates with CAN 2.0A and CAN 2.0B standards supported by the ARM Cortex-M0 32-bit micro-controller chipset. This is a compact device, meant to be used on a desktop or table surface.

The Galvanic Isolation serves to block any stray currents as the USB to CAN Bus adapter is being used. The adapter includes +/- 16kV ESD protection for all signals and 2500V galvanic isolation on CAN bus. SECC metal is used for the adapter's compact chassis with a 61mm × 50mm × 23mm (L × W × H) size.

1-Port USB to CAN Bus Adapter Features

  • Adds a CAN bus port on your computer by connecting to a USB 1.1, 2.0 or 3.0 port.
  • 2500V galvanic isolation.
  • Powered by USB port, no external power adapter required.
  • LEDs indicate initialization and CAN bus status.
  • Installs as a standard Windows COM port.
  • Supported CAN modes: Standard, Listen, Echo.
  • Can be controlled over serial port using ASCII commands.
  • Easy to use API provided along with sample source codes and GUI sample programs.
  • Easy plug and play installation and CAN bus device connection.
  • CAN bus speed up to 1Mbps.
  • 512 bytes transmit/receive FIFO buffer for high speed data throughput.
  • Supports CAN 2.0A and CAN 2.0B protocols.
  • Designed by ARM Cortex-M0 32-bit micro-controller and the USB to UART chip.
  • Drivers provided for Windows and Linux OS.
  • Item Dimensions: 61mm × 50mm × 23mm (L × W × H)
  • Item Weight: .219lbs.

CAN Bus Adapter Specification:

  • CAN Bus: CAN 2.0A and CAN 2.0B supported
  • CAN Bus Speed: 5kbps to 1Mbps for transmit & receive
  • Plug and Play
  • CAN Bus Controller: BosCH C_CAN module
  • Ports: 1
  • Connector: DB9 Male
  • Signals: CAN_H, CAN_L, CAN_GND, CAN_V+
  • LED: CAN bus data activity, CAN bus error
  • Protection: +/- 16kV ESD protection for all signals, 2500V galvanic isolation on CAN bus
  • Power Input: Power supplied via USB (5V) connector No external power needed
  • Power Consumption: Max. [email protected] DC

Environmental

  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -20°C to 75°C (-4°F to 167°F)
  • Operating Humidity: 5% to 95% RH
  • Safety Approvals: CE, FCC

Package Contents

  • USB to CAN Bus Adapter
  • USB A to B Cable
  • Driver Disc

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Please be as detailed as possible with your description. The more complete your information is the faster we can return an answer

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability: Limited Stock
Barcode: 045079161146Ship Weight: 0.49Condition: New
Part Number: CG-1PMGICANColor: BlackLength/Size: in
Port Count: 1Port Type: --Input Voltage: 5V DC
Temperature(Op): 0C ~ 60CESD Protection: --Serial Modes: CANBUS
LEDs: --Isolation: --Chip: --

Specifications

Manufacturer: Coolgear
Barcode: 045079161146
Part Number: CG-1PMGICAN
Warranty: 1 Year
Ship Weight: 0.49
Color: Black
Availability: Limited Stock
Availability: Limited Stock
Condition: New
Port Count: 1
Port Type: --
Input Voltage: 5V DC
Temperature(Op): 0C ~ 60C
ESD Protection: --
Isolation: --
Serial Modes: CANBUS
LEDs: --
Chip: --

User Reviews

Product Rating:
(0 reviews)
No Reviews, be the first to leave one.

LAST 4 REVIEWS

VIEW ALL REVIEWS

Similar Items

Similar Item Image

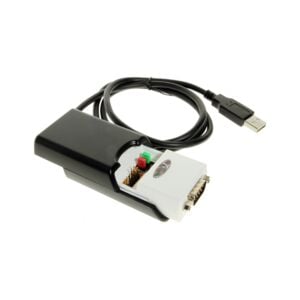

Single Port USB to CAN Bus 3FT Adapter Support Windows 10
