USB C Hub 4 Port USB 3.1 Gen1 SuperSpeed Type-B Upstream

Part # CG-4PU31C1B1
$98.99

Status: Low stock, please call or email for status

Volume Pricing

Qty: 1+
$98.99

Qty: 6+
$97.51

Qty: 12+
$96.76

Qty: 24+
$95.53

Qty: 48+
$94.78

Qty: 99+
$93.05

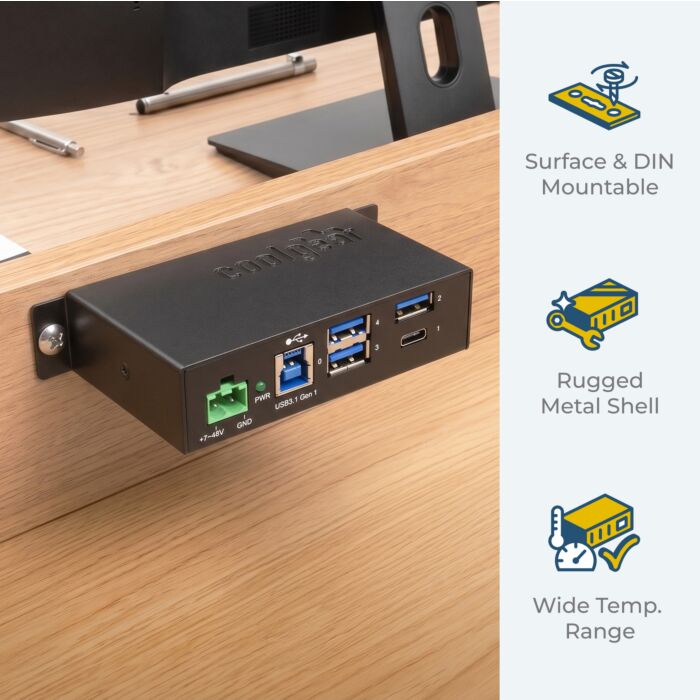

USB C Hub provides USB 3.1 4 ports with 5Gbps data transfer speed and options for wall mounting or DIN Rail mounting. The USB 3.1 hub is compact for industrial environments using USB C connections. Supports normal charging.

Product Documentation & Drivers

USB C Hub 4 Port USB 3.1 Gen1 SuperSpeed Type-B Upstream

Part # CG-4PU31C1B1
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$98.99

Volume Pricing

Qty: 1+
$98.99

Qty: 6+
$97.51

Qty: 12+
$96.76

Qty: 24+
$95.53

Qty: 48+
$94.78

Qty: 99+
$93.05

Documentation

Mini USB C 4 Port Hub with 1 USB C port and Type-B upstream Port

CoolGear's new USB C hub for industrial applications is compact and mountable with 4 downstream ports comprising of (3) USB-A and (1) USB C port.

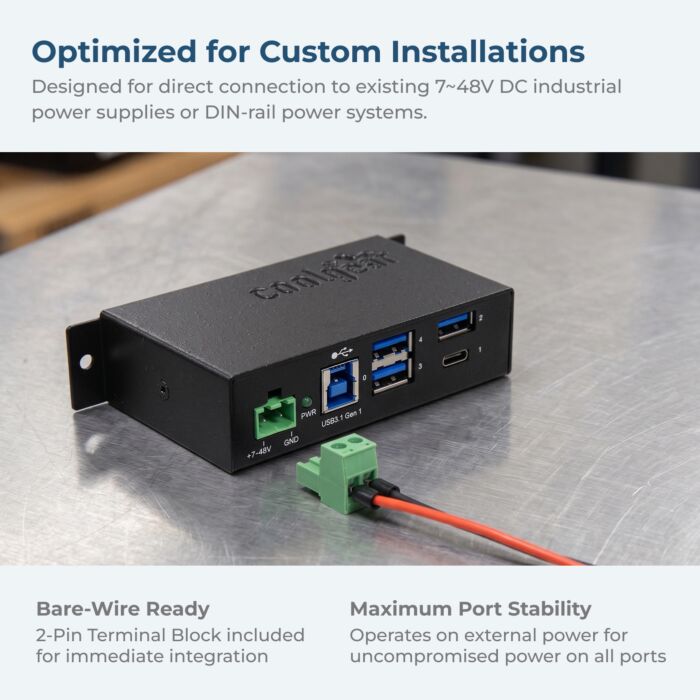

The USB C hub is a generation 1 hub of USB 3.1 supporting Super-Speed 5Gbps data transmission speeds and the reversible type-C port. This hub is self powered with a 2-pin terminal block connector to supply power input of +7 ~ 48V DC sold separately.

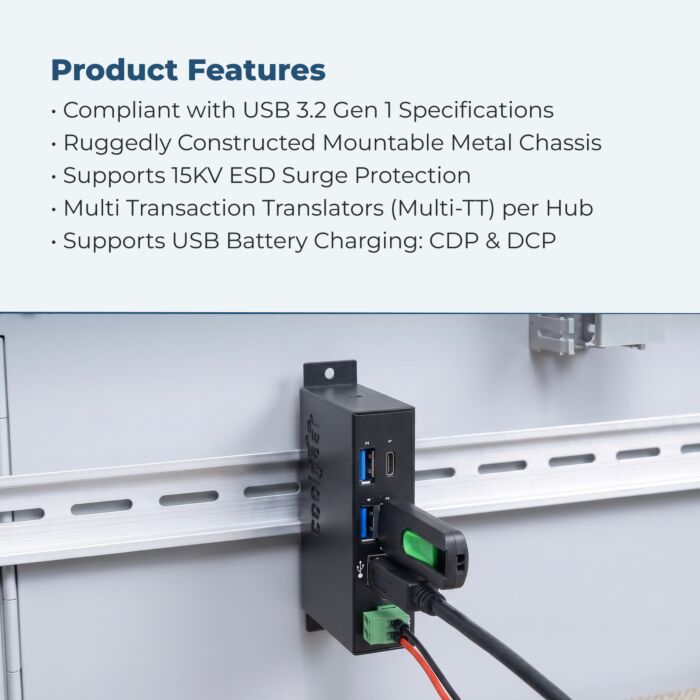

USB C Hub Features

  • Compliant with USB 3.1 Gen 1 Specifications

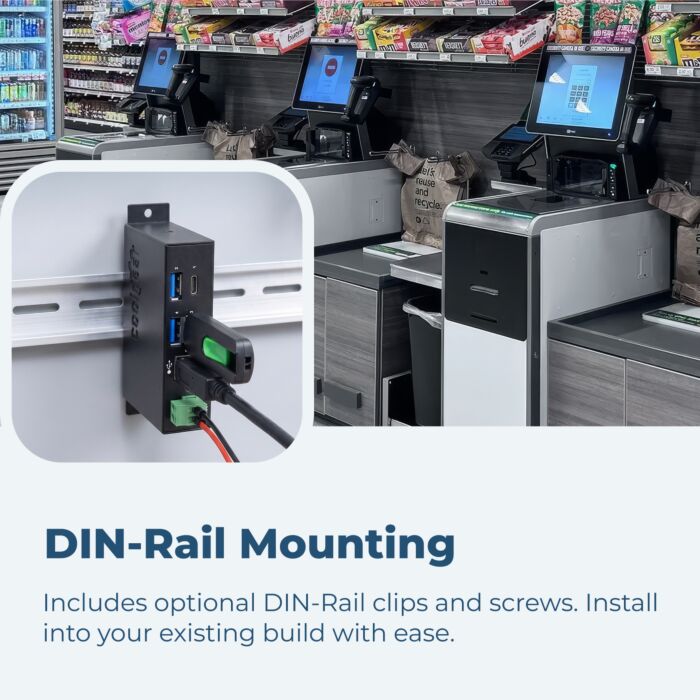

  • Ruggedly constructed DIN Rail mountable metal chassis
  • Can be wall mounted via attached flange

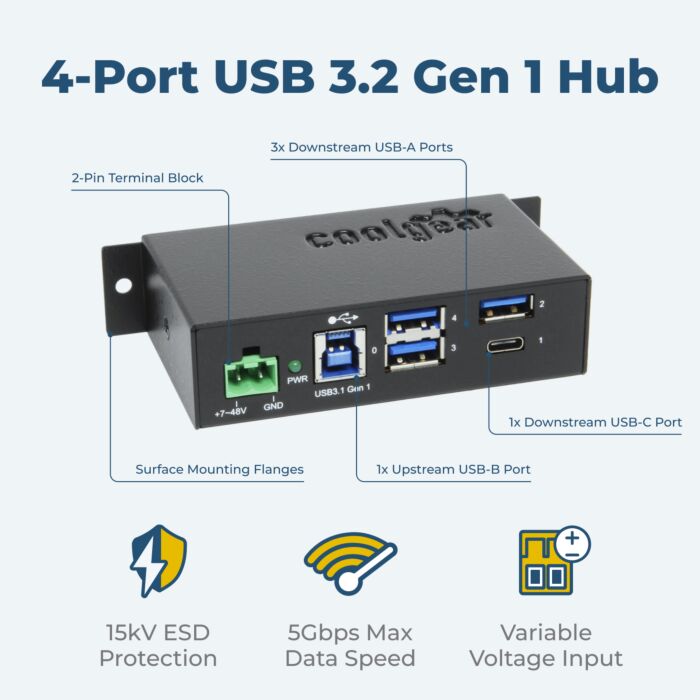

  • Provides 4 (1 USB-C and 3 USB-A) downstream facing USB 3.1 ports
  • Uses included USB 3.1 A to B cable for upstream data.
  • Supports 5Gbps (super-speed), 480Mbps (High-Speed), 12Mbps (Full-Speed), and 1.5Mbps (low-speed) speeds
  • Supports 15KV ESD Surge Protection
  • Multi Transaction translators (TT) per hub
  • Supports USB battery charging: CDP and DCP modes

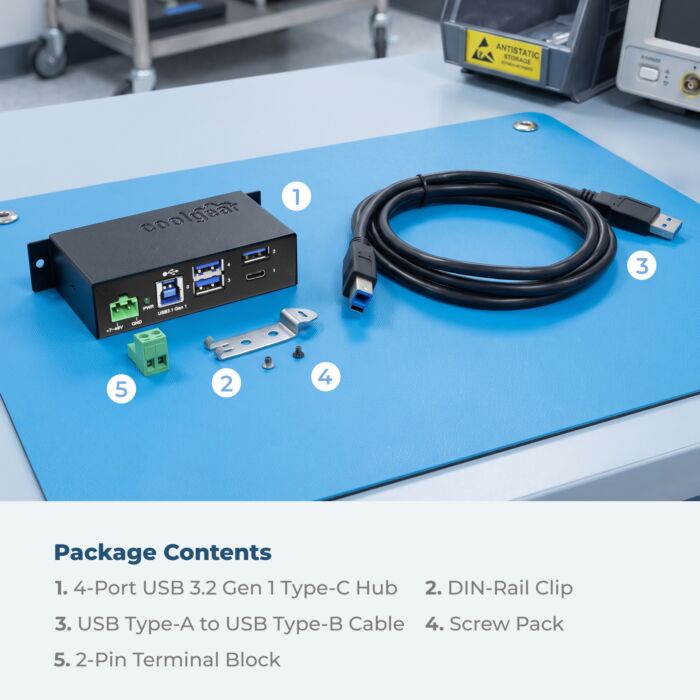

Package Contents

  • 1x USB C Gen1 4 port Hub
  • 1x 6ft. USB 3.1 A to B cable
  • 1x DIN Rail clip and screws
  • User manual

*Surface Mounting screws not included.

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability: Limited Stock
Barcode: 045079158429Ship Weight: 0.94Condition: New
Part Number: CG-4PU31C1B1Color: BlackLength/Size: --
USB Spec: USB 3.2 Gen 1Max Data Rate: 5 GbpsInput Voltage: 7 ~ 48V DC
Upstream Port: USB 3.2G1 / 3.0 Type-B FemaleDownstream Port(s): 1x Type C USB 3.2 G1 / 3.0
3x Type A USB 3.2 G1 / 3.0
Screw Lock
Compatible:
No

Specifications

Manufacturer: Coolgear
Barcode: 045079158429
Part Number: CG-4PU31C1B1
Warranty: 1 Year
Ship Weight: 0.94
Color: Black
Availability: Limited Stock
Condition: New
USB Spec: USB 3.2 Gen 1
Max Data Rate: 5 Gbps
Input Voltage: 7 ~ 48V DC
Upstream Port: USB 3.2G1 / 3.0 Type-B Female
Downstream Port(s): 1x Type C USB 3.2 G1 / 3.0
3x Type A USB 3.2 G1 / 3.0
Screw Lock
Compatible:
No
