ChargeIt! Mini 200W Dual Type-C PD Charger 100W output each port 24V Input
Status: Low stock, please call or email for status
Volume Pricing
Qty: 1+
$64.99
Qty: 6+
$64.02
Qty: 12+
$63.53
Qty: 24+
$62.72
Qty: 48+
$62.23
Qty: 99+
$61.09
Industrial Grade | +24~28V DC Input | Over Voltage & Current Protection | Surface Mountable
- Simultaneous Charging: Charge 2 laptops, tablets, phones, or other USB-charged in charge mode devices, while the built in PD chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance.
- Quick Charging: Provides up to 200W of combined charging.
- PPS: Programmable power supply capability allows for small step-wise changes in voltage, current, and for constant current charging (with gradual voltage increase), followed by constant voltage charging (with gradual current reduction).

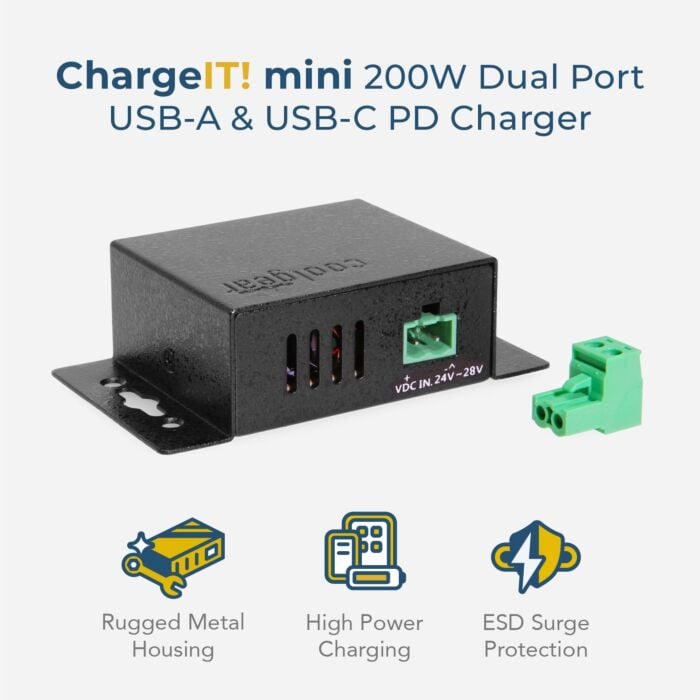

- Superior Build Quality: Housed in a rugged metal chassis, the 2-port charger hub is perfect for installations in workstations, offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications

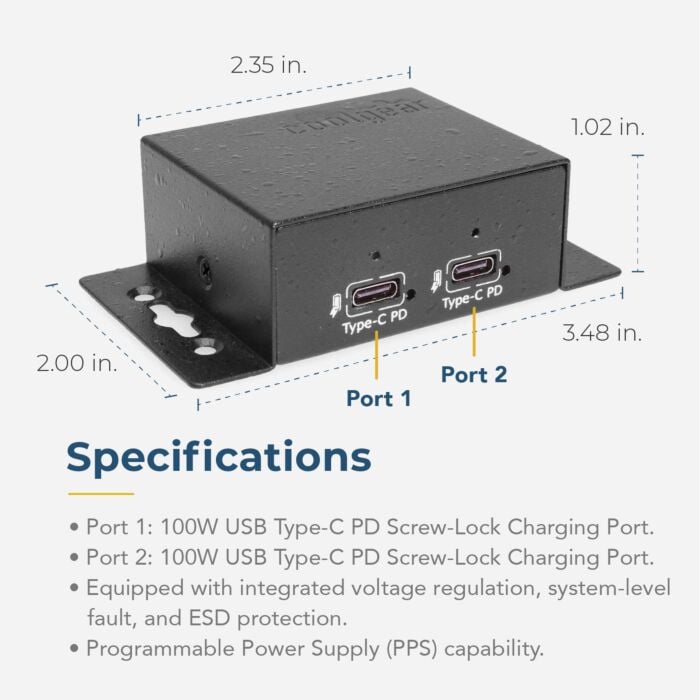

- Downstream: 2 USB Type-C PD Ports

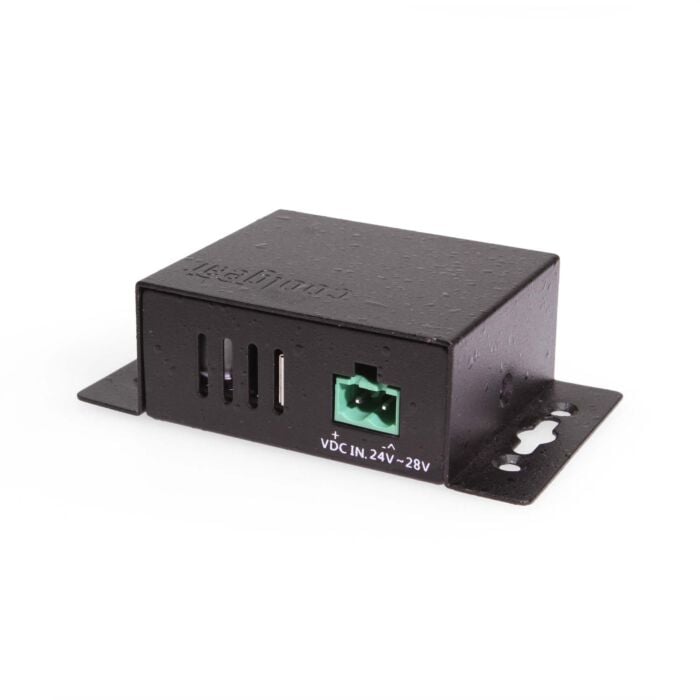

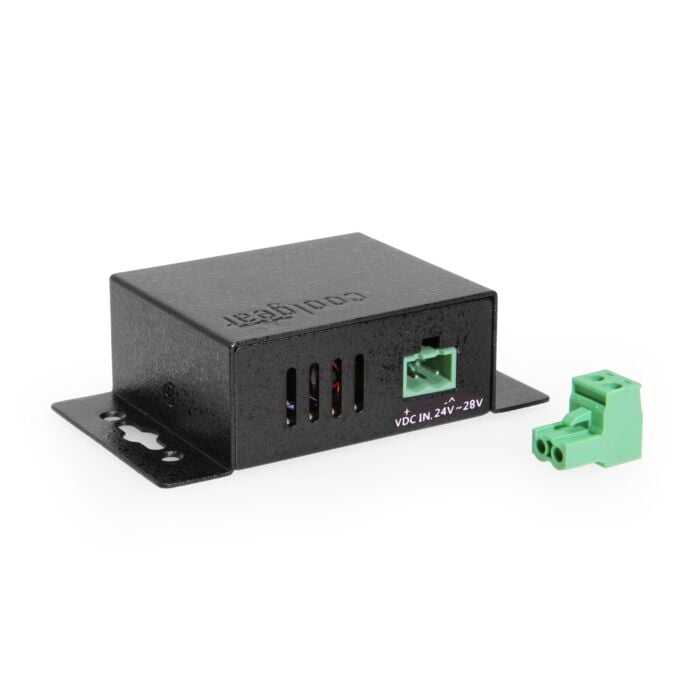

- Power Connector: 2-Pin Terminal Block

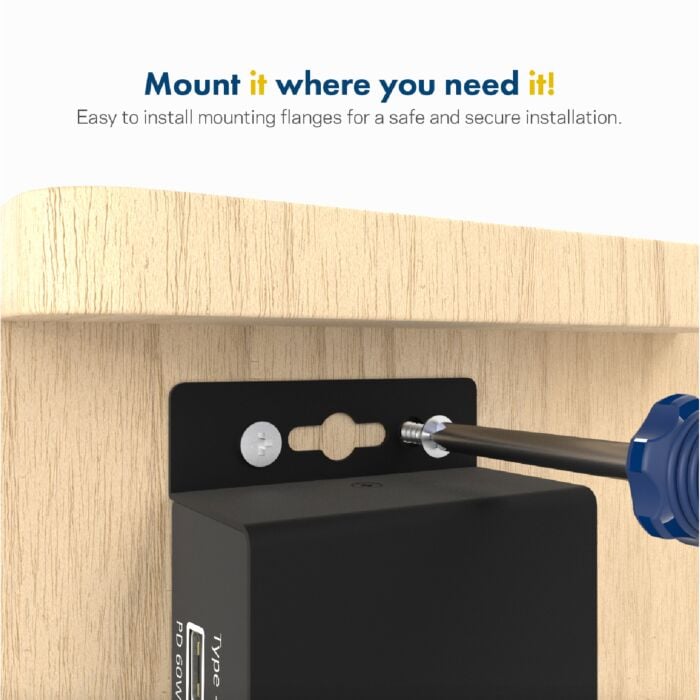

- Mounting Options: Wall & Surface
- LED Indicators: Power
Product Documentation & Drivers
ChargeIt! Mini 200W Dual Type-C PD Charger 100W output each port 24V Input
Volume Pricing
Qty: 1+
$64.99
Qty: 6+
$64.02
Qty: 12+
$63.53
Qty: 24+
$62.72
Qty: 48+
$62.23
Qty: 99+
$61.09
Documentation
Introduction:
This High Power Dual Port USB Type-C Industrial PCBA complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides two 100W USB Type-C PD ports for a combined 200W of charging.
Specifications:
- 200 Watt Buck-Boost Dual Type-C PD 3.0 100x2
- Supports output line compensation function to get stable output voltage
- Synchronous-rectified Buck-Boost converter
- Supports multi-protection on input: Over voltage, under voltage, output over current, and short circuit protection. ESD Surge protection of 4kV.
- Input voltage range: 24~28V ( 22min ~ 30V Max)
Type-C and PD Protocol:
- Support 5V/9V/12V/15V/20V output
- Support PD2.0/PD3.0(PPS) protocol
- Support 3.3V-21V, 20mV/step PPS
- Support E-MARK cable
Fast charge output
- Support Type-C and PD protocol
- Support BC1.2 and Apple protocol
- Support QC2.0/ QC3.0/ QC3+ protocol
- Support FCP/SCP protocol
- Support AFC protocol
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | Limited Stock |
| Barcode: | 045079163720 | Ship Weight: | 0.28 | Condition: | New |
| Part Number: | CG-PD200MAX | Color: | Black | Length/Size: | -- |
| USB Spec: | Charging Only | Max Data Rate: | N/A | Input Voltage: | 24V DC |
| Upstream Port: | Downstream Port(s): | 2x Type C (Charging) | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079163720 |
| Part Number: | CG-PD200MAX |
| Warranty: | 1 Year |
| Ship Weight: | 0.28 |
| Color: | Black |
| Availability: | Limited Stock |
| Condition: | New |
| USB Spec: | Charging Only |
| Max Data Rate: | N/A |
| Input Voltage: | 24V DC |
| Upstream Port: | |
| Downstream Port(s): | 2x Type C (Charging) |
| Screw Lock Compatible: |
No |
