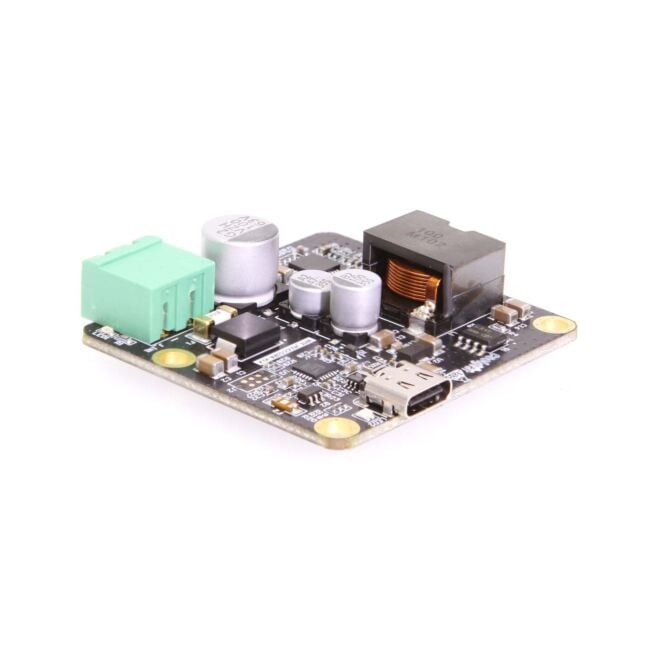

ChargeIT! Mini 82W USB Type-C PD Charger PCBA w/ 24~48V DC Input
Part # CG-PDHV82W-PCBA
$49.99
Status: Available
This High Power Single Port USB Type-C charging board that complies with the latest USB-C and PD standards. Intended for use in PC power adapters, mobile chargers, car chargers and power bank applications. This charging board provides one 82W USB Type-C PD port.
- USB Type-C PD with PD 3.0 support
- BC v1.2, Apple Charging, AFC, Qualcomm Charging C3.0, QC2.0, Huaiwei FCP/SCP
- Utilizes CCG3PA and SIC461 BUCK
- Input Voltage Range of 24 ~ 48V DC
- Jumper will dampen input power to 65W if the source does not have ample amperage to provide power
- PD Profiles: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-4.2A
Product Documentation & Drivers
ChargeIT! Mini 82W USB Type-C PD Charger PCBA w/ 24~48V DC Input
Part # CG-PDHV82W-PCBA
Documentation
Specifications:
- High Voltage 24-48 DC Volt input (momentary 60V tolerant) USB Power Delivery Adapter 82Watt PD 3.0
- PD Profiles: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-4.2A
- DC Input USB power Delivery Power Adapter
- Utilizes CCG3PA and SIC461 BUCK Capable of delivering Maximum/Continues 82-Watts via Single USB Type C Port, PD 3.0 standard
- This solution supports PD 3.0, QC 3.0/2.0, AFC, Apple charging and BC 1.2 on Type-C port.
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
Specifications
| Manufacturer: | Coolgear | Warranty: | 1 Year | Availability: | Available |
| Barcode: | 045079163782 | Ship Weight: | 0.04 | Condition: | New |
| Part Number: | CG-PDHV82W-PCBA | Color: | Black | Length/Size: | -- |
| USB Spec: | Charging Only | Max Data Rate: | N/A | Input Voltage: | 24~48V DC |
| Upstream Port: | Downstream Port(s): | 1x Type C (Charging) | Screw Lock Compatible: |
No |
Specifications
| Manufacturer: | Coolgear |
| Barcode: | 045079163782 |
| Part Number: | CG-PDHV82W-PCBA |
| Warranty: | 1 Year |
| Ship Weight: | 0.04 |
| Color: | Black |
| Availability: | Available |
| Condition: | New |
| USB Spec: | Charging Only |
| Max Data Rate: | N/A |
| Input Voltage: | 24~48V DC |
| Upstream Port: | |
| Downstream Port(s): | 1x Type C (Charging) |
| Screw Lock Compatible: |
No |
