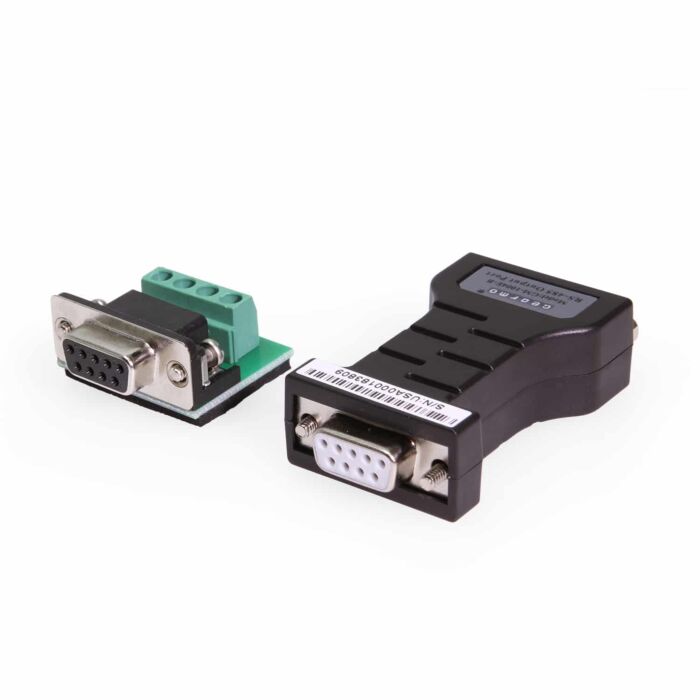

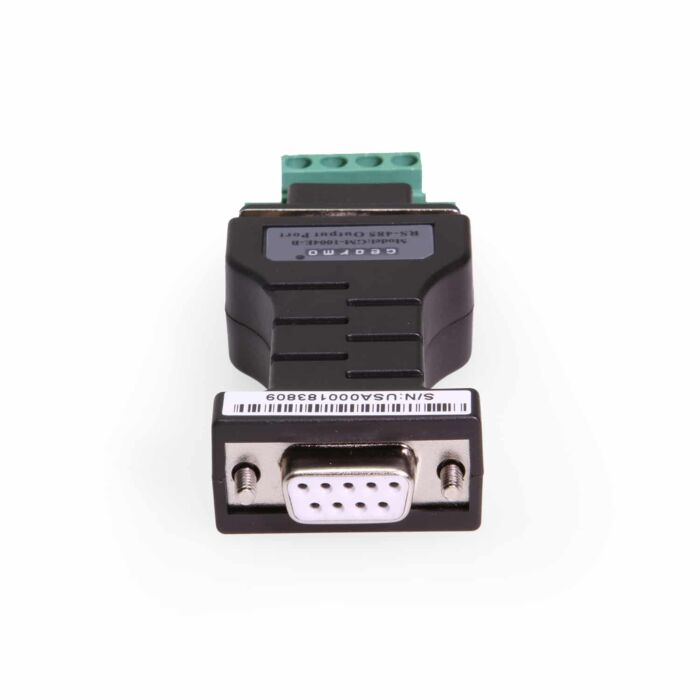

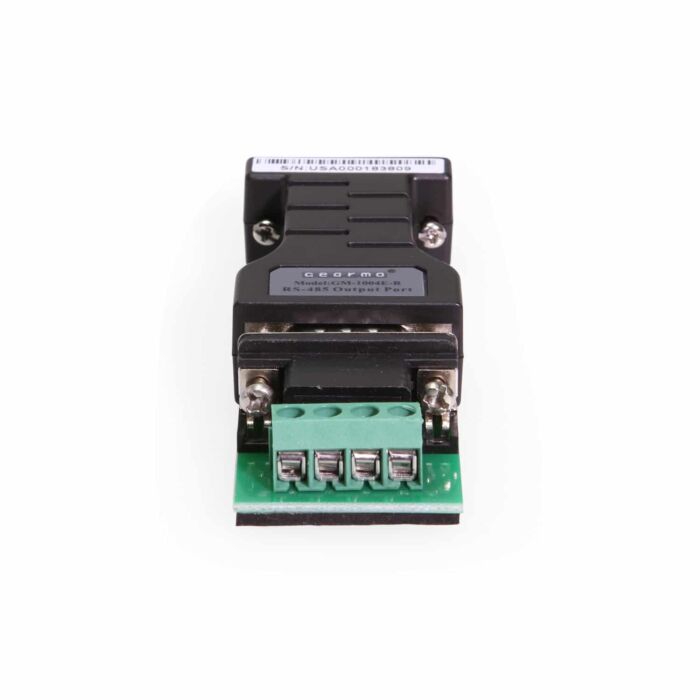

Industrial RS-232 to RS-485 Converter

Part # GM-1004E-B
$17.59

Status: Available

Volume Pricing

Qty: 1+
$17.59

Qty: 6+
$17.33

Qty: 12+
$17.19

Qty: 24+
$16.97

Qty: 48+
$16.84

Qty: 99+
$16.53

The GM-1004E-B converts RS-232 signals into balanced differential RS-485 signals. The converter is designed to protect the RS-485 port; with integrated TVS’s (TRANSIENT VOLTAGE SUPPRESSOR).

  • Transmission media: twisted-pair or shielded cable
  • Baudrate: 300ps-115.2kbps

Product Documentation & Drivers

Industrial RS-232 to RS-485 Converter

Part # GM-1004E-B
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$17.59

Volume Pricing

Qty: 1+
$17.59

Qty: 6+
$17.33

Qty: 12+
$17.19

Qty: 24+
$16.97

Qty: 48+
$16.84

Qty: 99+
$16.53

Documentation

For communication between PC with different standard serial port and external equipment or intelligent instruments, where standard serial conversion is necessary. The GM-1004E-B converter is compatible with RS-232C, RS-485 standards. It converts RS-232 signals into balanced differential RS-485 signals. This converter is designed to protect an RS-485 port; as it adopts advanced TVS's (TRANSIENT VOLTAGE SUPPRESSOR). The transmission distance of RS-232 communication can be extended to 1.2km. It adopts unique “RS-232” charge boost technology to drive the system, and gains power without initializing the RS-232 serial port. This converter has built-in zero delay auto receiving, and transmitting conversion, offers unique I/O circuit with auto data flow direction without any handshake signal (RTU, DTR); this guarantees that there is no need to modify programming under RS-232, will run smoothly under current software and hardware. The transmission rate is 300-115.2kbps. It can be used between hosts, host and SCM, which building a point to point, point to multipoint long-distance communication networking. It is widely applied in industrial automation control systems, all-in-one cards, access control systems, parking systems, ATM systems, bus charging systems, canteen ticketing systems, attendance systems, and toll station systems, etc.



Features:

  • Standards: RS-232, RS-485 TIA/EIA
  • Connector: RS-232 DB9 female, RS-485 DB9 male, with terminal block
  • Operating mode: asynchronous half-duplex, differential transmission
  • Transmission media: twisted-pair or shielded cable
  • Baudrate: 300ps-115.2kbps
  • Operating temperature: -40℃ to 85℃
  • Relative humidity: 5% to 95%
  • Transmission distance: 1,200m (RS-485); 5m (RS-232)
  • Protection: RS-485 each line 600W surge, lightning protection

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: GearmoWarranty: 1 YearAvailability: Available
Barcode: 045079162679Ship Weight: 0.07Condition: New
Part Number: GM-1004E-BColor: BlackLength/Size: in
Port Count: --Port Type: --Input Voltage: Unspecified or N/A
Temperature(Op): --ESD Protection: --Serial Modes: RS232, RS485
LEDs: --Isolation: --Chip: --

Specifications

Manufacturer: Gearmo
Barcode: 045079162679
Part Number: GM-1004E-B
Warranty: 1 Year
Ship Weight: 0.07
Color: Black
Availability: Available
Condition: New
Port Count: --
Port Type: --
Input Voltage: Unspecified or N/A
Temperature(Op): --
ESD Protection: --
Isolation: --
Serial Modes: RS232, RS485
LEDs: --
Chip: --
