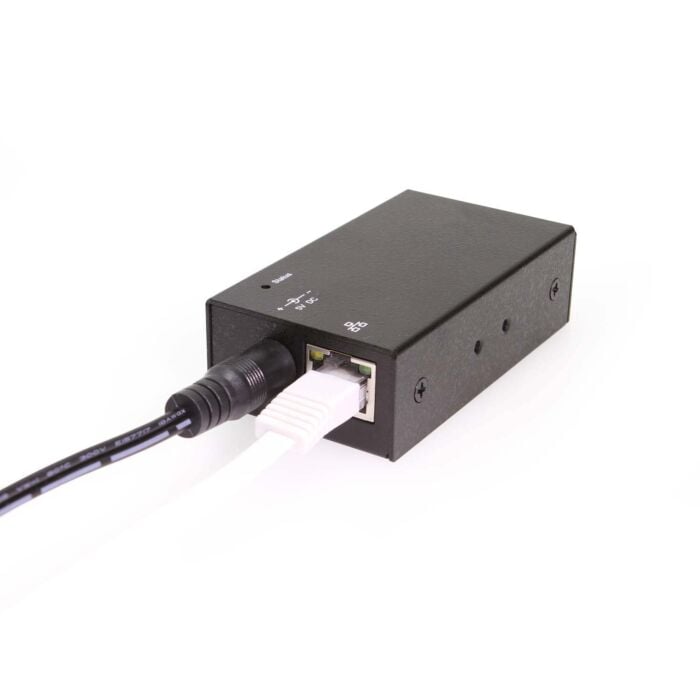

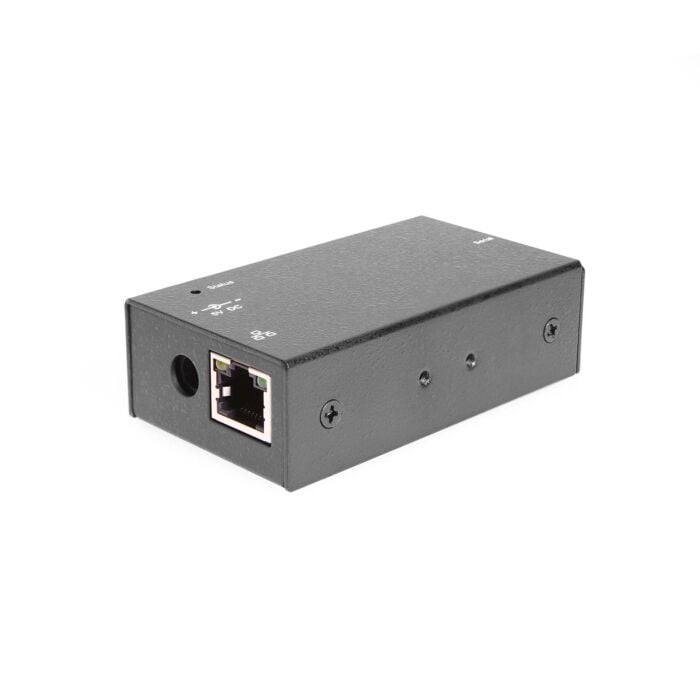

1-Port RS-232 / RS-422 / RS-485 Serial to Ethernet Device Server, PoE Powered

Part # MSD-SRP1XM-PRO
$99.99

The MSD-SRP1XM-PRO is a multi-protocol RS-232 / 422 / 485 3-in-1 serial device server that is designed to connect RS-232, RS-422 and RS-485 serial devices including POS, barcode readers, sensors, meters, weighing systems, CNC controllers and PLC to an IP-based Ethernet Network.

Compatibility

1-Port RS-232 / RS-422 / RS-485 Serial to Ethernet Device Server, PoE Powered

Part # MSD-SRP1XM-PRO
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$99.99

Compatibility

The MSD-SRP1XM-PRO is a multi-protocol RS-232 / 422 / 485 3-in-1 serial device server that is designed to connect RS-232, RS-422 and RS-485 serial devices including POS, barcode readers, sensors, meters, weighing systems, CNC controllers and PLC to an IP-based Ethernet Network. The MSD-SRP1XM-PRO provides 1 port, supporting RS-232, RS-422, and RS-485 modes.

The MSD-SRP1XM-PRO can extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. In addition, the unit can be powered by the included 5V DC Power Supply.

The serial devices are connected to Ethernet and available through the Internet for sharing, configuring remotely via the rich Network Protocols such as TCP Server, TCP Client, UDP, VCOM, Serial Telnet, RFC2217, Remote-Pair-Master-Slave, Modbus RTU.

To be backward compatible with the legacy serial device running the existing COM port application software, the MSD-SRP1XM-PRO provides a Virtual COM port redirection driver (VCOM) migrating your serial application perfectly without modifying the software.

Moreover, with the Remote-Pair-Master-Slave mode, serial devices can communicate each other via the peer-to-peer mode without any intermediate PC nor conversion software.
Since the Ethernet is the most popular and flexible inter-connection in this modern industry, with the complete software and rich selectable models support, the MSD-SRP1XM-PRO series of the serial device servers provide an ideal solution to add your serial devices and value for your applications and save your investment.

Features:

  • Supports 1 Male DB9 Serial Port Over Ethernet
  • 1 RJ45 10/100 Mbps Ethernet Port
  • Rugged Metal Case with DIN-Rail and Wall-Mount Kit
  • Serial Modes: RS-232, RS-422, RS-485 4-wire and 2-wire Modes
  • Network Protocols: TCP Server, TCP Client, UDP, VCOM, Serial Telnet, RFC2217, Remote-Pair-Master-Slave, Modbus Server, Modbus Client
  • Supports SNMP Protocols
  • Supports 15 KV ESD Protection for all Serial Signals
  • Provides Rich Configuration Methods Including Windows Based VCOM Administrator Utility and Web Browser
  • Provides COM Port Redirection (Virtual COM) Drivers
  • Supports Serial Baud Rate Up to 921.6Kbps
  • Supports Automatic Data Flow Control
  • Compact Size, Multiple Orientation Mounting Options
  • Can be powered by either PoE or the included 5V DC Power Supply

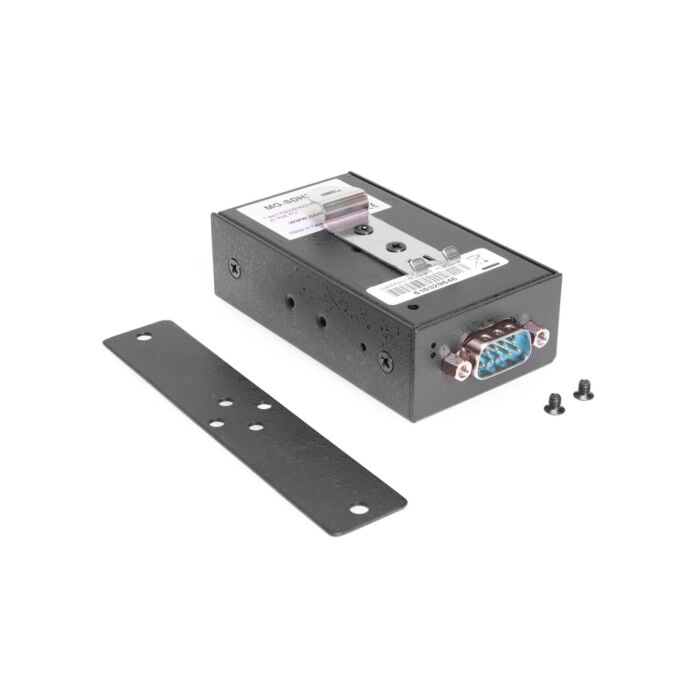

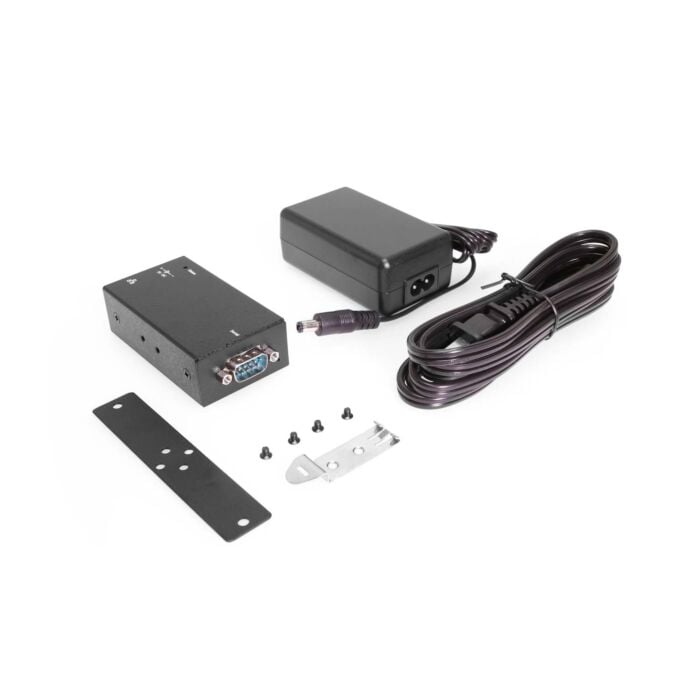

Package Contents:

  • 1-Port Serial to Ethernet Device Server
  • 5V DC Power Supply
  • DIN Rail Clip
  • Surface Mounting Bracket
  • Screw Pack (4x)

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability: Limited Stock
Barcode: 045079163256Ship Weight: 1.11Condition: New
Part Number: MSD-SRP1XM-PROColor: BlackLength/Size: in
Port Count: 1Port Type: Male DB9 /W NutsInput Voltage: Unspecified or N/A
Temperature(Op): --ESD Protection: 15kvSerial Modes: Array
LEDs: --Isolation: --Chip: --

Specifications

Manufacturer: Coolgear
Barcode: 045079163256
Part Number: MSD-SRP1XM-PRO
Warranty: 1 Year
Ship Weight: 1.11
Color: Black
Availability: Limited Stock
Condition: New
Port Count: 1
Port Type: Male DB9 /W Nuts
Input Voltage: Unspecified or N/A
Temperature(Op): --
ESD Protection: 15kv
Isolation: --
Serial Modes: Array
LEDs: --
Chip: --
