USB to 3.3V / 5V TTL Auto sensing adapter

Part # SS-TTL5P
$29.95

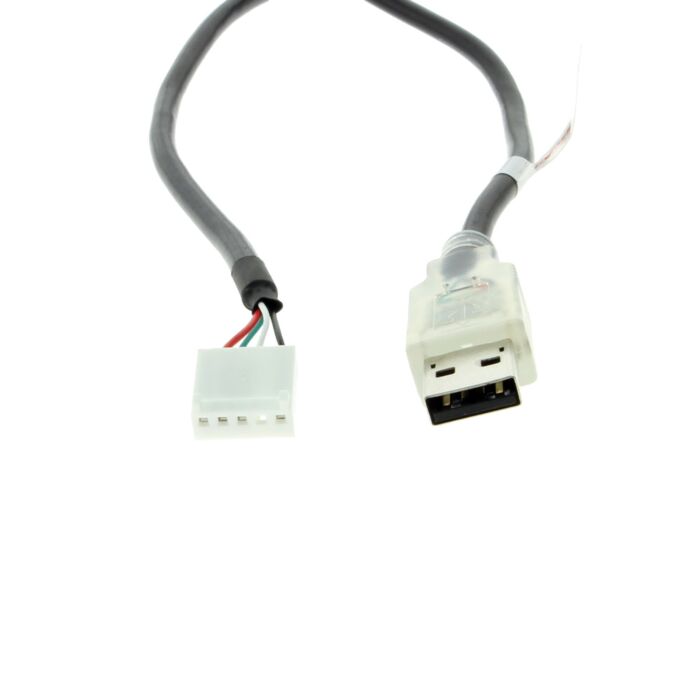

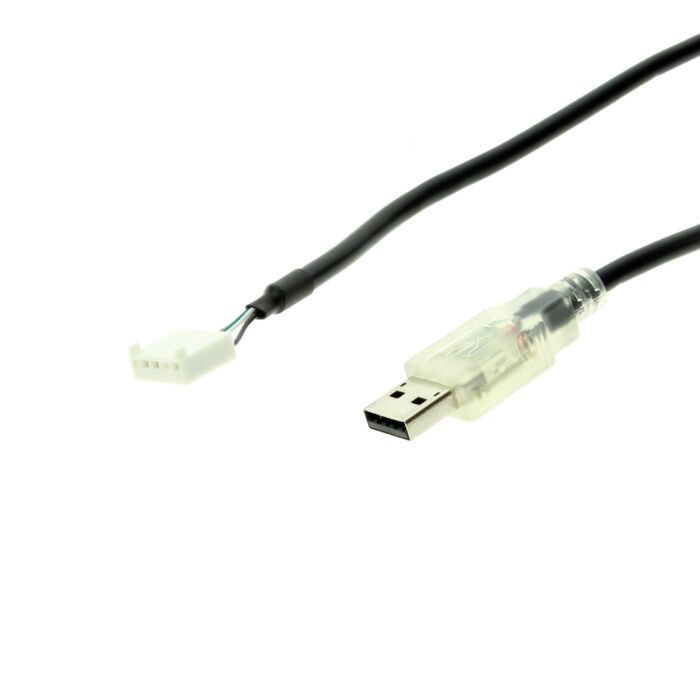

USB to 3.3V/5V TTL Auto sensing adapter is a USB to 5 Pin TTL Header assigned cable allowing direct connection to the board from the USB Bus. The serial UART adapter electronics automatically sense the voltage for its operation. Transmit and receive LED lights are embedded into the translucent USB molded jacket.

Compatibility

USB to 3.3V / 5V TTL Auto sensing adapter

Part # SS-TTL5P
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$29.95

Compatibility

This SS-TTL5P USB to 3.3V/5V Serial UART (TTL level) Auto Sensing Adapter allows connection to your computer through an existing USB port and uses it as an available regular serial communication port. Protocol for all USB is handled within this adapter, there is no other device or programming required.

The adapter is a great solution for embedded systems that require a serial connection to a computer. The board attaches directly to the USB bus via a standard type A receptacle connector. It shows up on any Windows computer as a standard serial COM port. Any applications that talk to this COM port is automatically converted to USB and back to UART (Universal Asynchronous Receiver/Transmitter) to your target board.

USB to 3.3V/5V TTL Auto sensing adapter Features

  • The Cable provides a USB to TTL Serial interface with various end connectors.
  • Single board USB to asynchronous serial data transfer interface
  • Entire USB protocol handled by the electronics in the cable USB
  • UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
  • Data transfer rates from 300 baud to 3 Mbaud at TTL levels.
  • Auto Voltage sensing
  • Transmit and receive LEDs
  • UHCI / OHCI / EHCI host controller compatible
  • Low USB bandwidth consumption.
  • 6ft. cable length

5-Pin TTL Header Assignment

  • Pin 1 VCC
  • Pin 2 TXD
  • Pin 3 RXD
  • Pin 4
  • Pin 4 GND

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Please be as detailed as possible with your description. The more complete your information is the faster we can return an answer

Specifications

Manufacturer: GearmoWarranty: --Availability: Available
Barcode: 729440625856Ship Weight: 0.16Condition: New
Part Number: SS-TTL5PColor: BlackLength/Size: in
Port Count: --Port Type: --Input Voltage: Unspecified or N/A
Temperature(Op): --ESD Protection: --Serial Modes: --
LEDs: --Isolation: --Chip: --

Specifications

Manufacturer: Gearmo
Barcode: 729440625856
Part Number: SS-TTL5P
Warranty: --
Ship Weight: 0.16
Color: Black
Availability: Available
Availability: In Stock
Condition: New
Port Count: --
Port Type: --
Input Voltage: Unspecified or N/A
Temperature(Op): --
ESD Protection: --
Isolation: --
Serial Modes: --
LEDs: --
Chip: --
