20 Port USB 2.0 Industrial High Power 2.4A Charging Hub w/ ESD Surge Protection & Port Status LEDs

Part # U2CHGRHUB20

Status: Available

Industrial Grade | +12V DC Input | Surge Protection | Surface Mountable | 480 Mbps | Power Supply

  • Simultaneous Charging: Charge and sync up to 20 iPads, iPhones or other USB-charged in charge mode devices, providing each USB port with the optimum charge level for each device.
  • Protect Your Equipment: The 20-port USB 2.0 Charger Hub features 15kV ESD protection to keep your connected peripherals safe from harm.
  • High Speeds: This USB hub is 2.0 compliant, ensuring super-fast 480 Mbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 1.1.
  • Superior Build Quality: Housed in a rugged metal chassis, the 20-port charger hub is perfect for installations in offices, labs, warehouses, classrooms, heavy machinery, automation equipment, and other industrial applications.
  • Upstream: 1 USB port, Type B connector
  • Downstream: 20 USB ports, Type A connectors
  • Power Connector: 6-Pin Molex Power Connector
  • Mounting Options: Desktop & Surface
  • LED Indicators: LEDs for each downstream port to check their status. (Red: Charge / Orange: Sync)
  • Supply Current: 2.4A USB Bus Power for Each Down-stream Port

Product Documentation & Drivers

20 Port USB 2.0 Industrial High Power 2.4A Charging Hub w/ ESD Surge Protection & Port Status LEDs

Part # U2CHGRHUB20
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail



The 20-Port USB Charging hub is a solution for quick charging or synchronizing up to 20 iPads, iPhones iPods and USB charging devices operating simultaneously, comes with power adapter, USB cable, and rack mounting brackets and screws.

The 20-port USB charger is a combination USB 2.0 hub and charger and a perfect tool to effectively perform Sync/Charge Mode switching. It's ideal to be used as a large capacity USB station working in-house that enables 20 ports charging and syncing at any time.

The high power USB charger hub power supply and port current range allow any school, businesses, or organization to take advantage of this charging hub as the go to tool for daily charge/sync functions for the classroom, conference room, or presenter. The USB charging hub incorporates an on/off switch and 3 color LED indication for fully charged, charging in progress, and syncing.


  • Compliant with USB Battery Charging Spec 1.2
  • Enables to provide up to 1.5A at Sync (CDP mode) or 2.4A at Charge (DCP mode) output current on each port
  • Supports the iOS, Android devices
  • Enables Sync/Charge mode switching upon manually connecting or disconnecting host port
  • If all devices are fully charged at Charge Mode, the unit would cut off the ports LED & power automatically

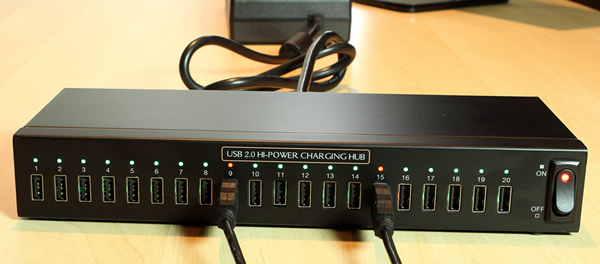

  • Intelligently detects the power current of each port by the sensing meter with firmware, and enables the port’s LED to illuminate its corresponding color. (Charging in progress: red; Disconnected or Fully charged: green)
  • Supports Over-Current Protection and ±15kV (air), ±8kV (contact) ESD protection on each port
  • Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
  • For the High-temp protection, if the unit’s high temperature is over the setting, it would cut off all the output current immediately. At the mean time, the whole LEDs of the 20 ports would be green blinking.
  • The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours
  • Enables to start/cut off the fans automatically according to the temperatures setup. If the board’s temperature is higher than the setting, it would start the fans automatically. On the contrary, if the board’s temperature is lower from the setting, it would cut off the fans automatically as well.
  • Item Dimensions: 10.55(L)x4.02(W)x1.57in(H)

Package Contents:

  • USB 2.0 hi-power charging hub
  • Power supply with power cord
  • USB 2.0 A/M to B/M cable
  • Mounting brackets with screws
  • User manual

*Surface Mounting screws not included.

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.


Manufacturer: USBGearWarranty: 1 YearAvailability: Available
Barcode: 045079157866Ship Weight: 7.50Condition: New
Part Number: U2CHGRHUB20Color: BlackLength/Size: --
USB Spec: USB 2.0Max Data Rate: 480 MbpsInput Voltage: 12V DC
Upstream Port: USB 2.0 Type-B FemaleDownstream Port(s): 20x Type A USB 2.0Screw Lock


Manufacturer: USBGear
Barcode: 045079157866
Part Number: U2CHGRHUB20
Warranty: 1 Year
Ship Weight: 7.50
Color: Black
Availability: Available
Condition: New
USB Spec: USB 2.0
Max Data Rate: 480 Mbps
Input Voltage: 12V DC
Upstream Port: USB 2.0 Type-B Female
Downstream Port(s): 20x Type A USB 2.0
Screw Lock
