- Supports Downstream Facing Port (DFP).
- Compliant with USB Battery Charging Spec 1.2.
- Provides up to 5V 3A output current on each port; Supports iOS, Android devices.
- Enables Green Energy function (ECO Mode) automatically shutdown the hub when all devices are fully charged at Charge mode.
- Supports Over-Current Protection & Short Circuit Protection on each port.
- Over Temperature Protection: if the unit’s temperature exceeds safe operating conditions, it will cut off output current immediately. As a visual indicator, all 12 LED ports will start blinking.
- Supports ±15kV (air), ±8kV (contact) ESD protection on each port.
- Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
- The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours.
- Enables auto Start/Stop function for cooling fans. If the board’s temperature reaches high-temperature settings, the cooling fans will start up automatically. Once the board’s temperature has reduced below the threshold, the unit will turn off the fans automatically.

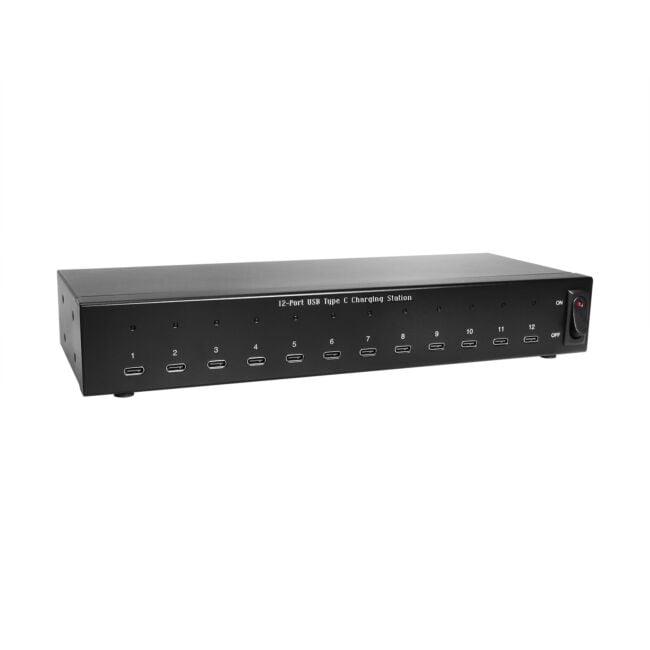

- USB 12-Port Type C Hi-Power Charging Station
- Power supply with power cord
- Mounting brackets with screws
- User manual
Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.
|Manufacturer:||CoolGear||Warranty:||1 Year||Availability:||Limited Stock|
|USB Spec:||USB 2.0||Max Data Rate:||N/A||Input Voltage:||12V DC|
|Upstream Port:||Downstream Port(s):||12x Type C (Charging )||Screw Lock
|USB Spec:||USB 2.0|
|Max Data Rate:||N/A|
|Input Voltage:||12V DC|
|Downstream Port(s):||12x Type C (Charging )|
