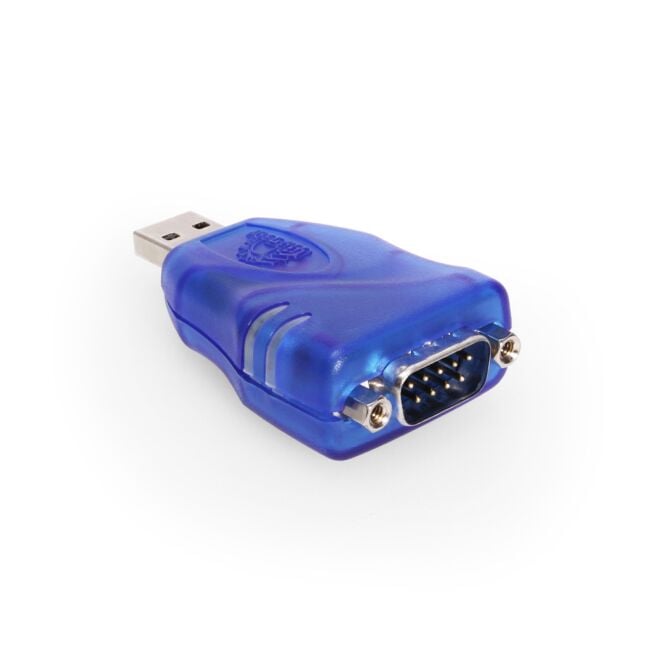

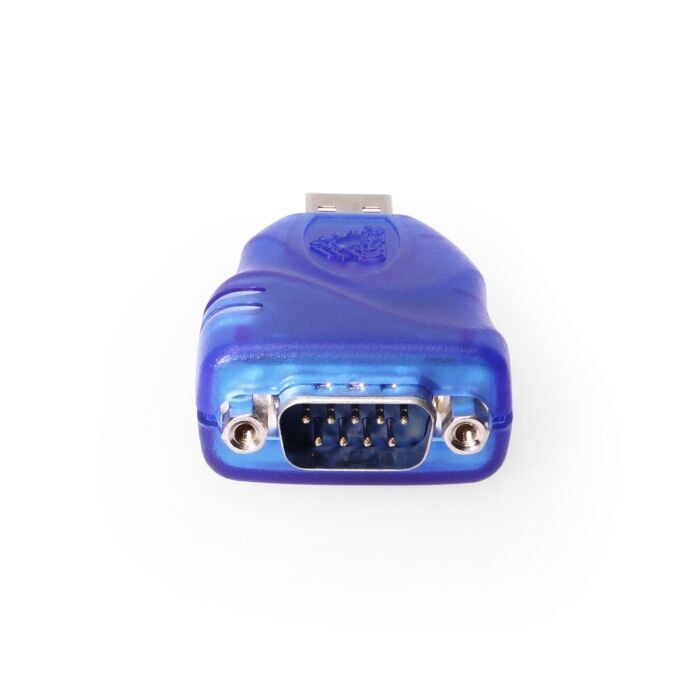

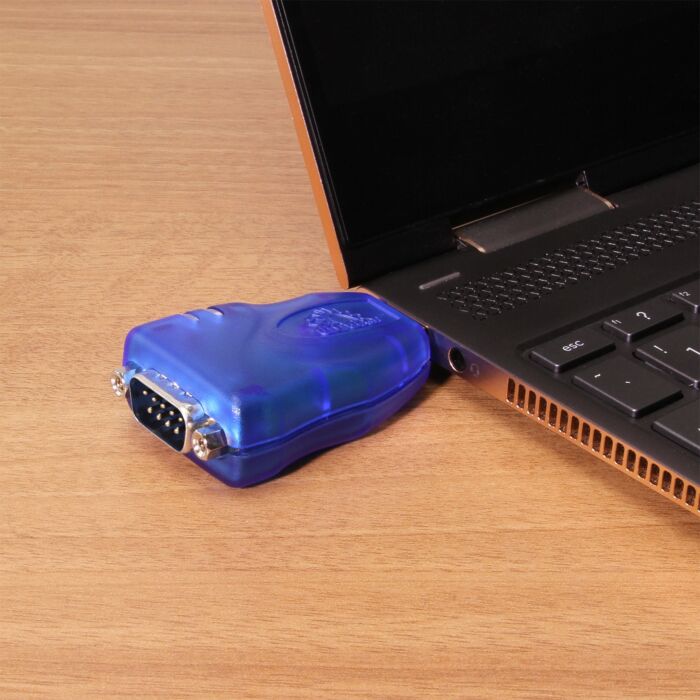

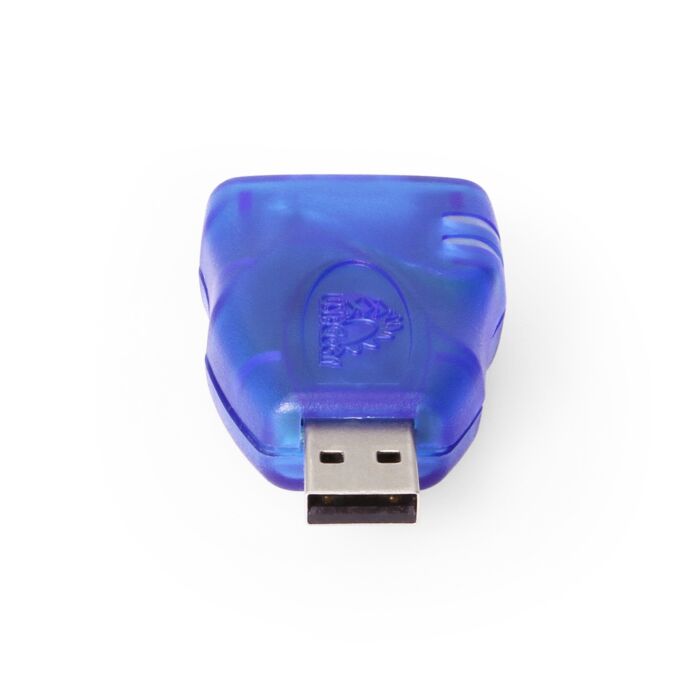

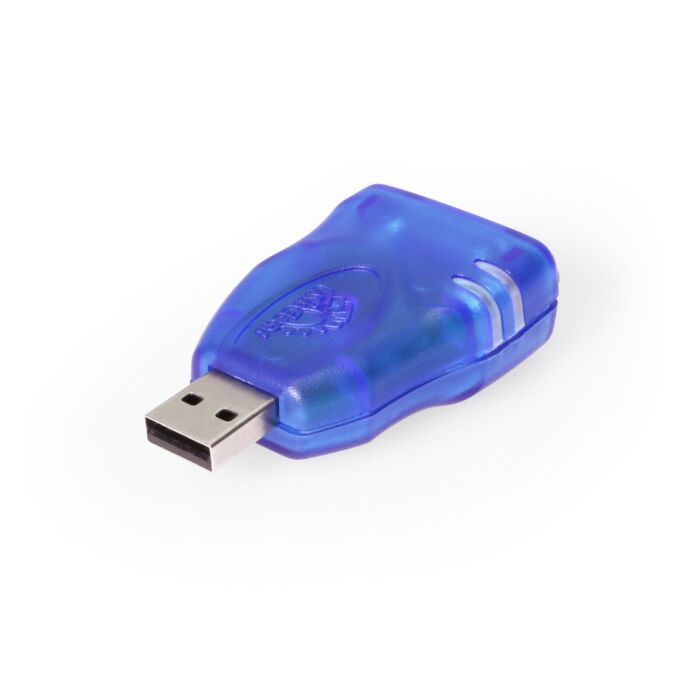

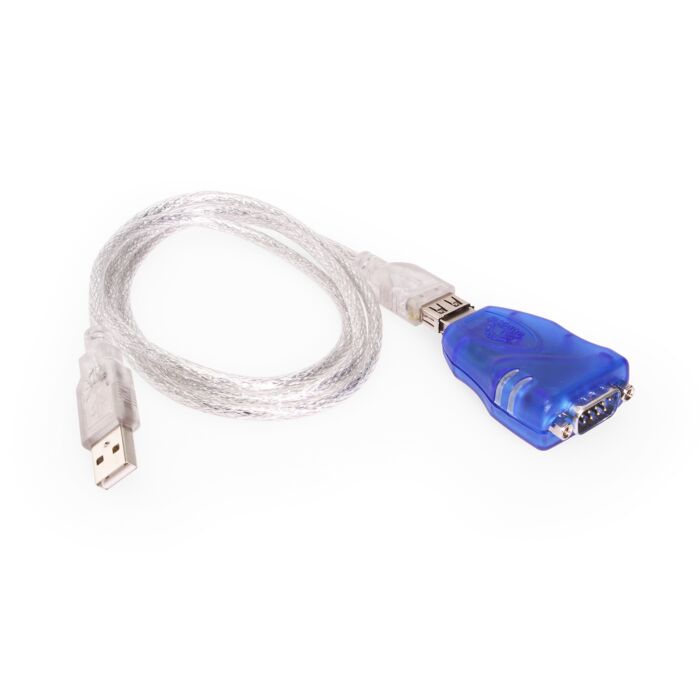

Mini USB 2.0 to RS-232 DB-9 Serial Adapter w/ 10kV Surge Protection & 3ft. USB Extension Cable

Part # USBG-232MINI
Product Rating:
(13 reviews)
$20.85

Status: Available

RS-232 | 128 Bytes Receive | 256 Bytes Transmit | FTDI

  • Expand Your Serial Capabilities: The Mini Serial Adapter can be utilized through an existing USB Port to work with your legacy serial connections. It’s great for newer technologies with no serial port connections.
  • Safe Connections: Designed with a unique system load reduction feature, the Mini USB to Serial Adapter also offers 15kV surge protection for connected devices.
  • Upstream: 1 USB port, Type A Male Connector
  • Downstream: 1 Male DB9, w/ nuts
  • RS-232 Signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
  • Transmit Buffer: 256 Bytes
  • Receive Buffer: 128 Bytes
  • LEDs: TX / RX

Compatibility

Product Documentation & Drivers

Mini USB 2.0 to RS-232 DB-9 Serial Adapter w/ 10kV Surge Protection & 3ft. USB Extension Cable

Part # USBG-232MINI
Product Rating:
4.7 out of 5 stars
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$20.85

Compatibility

Documentation

Introduction:

The USBG-232MINI serial adapter uses a Mini USB RS-232 format to synchronize your Handhelds, Digital Cameras, or other device currently using a serial port and works with your legacy serial connections. Connecting your serial devices to the newer computer equipment using USB bus technology gives you an advantage of adding one or more serial devices when needed. This  adapter is hot plug compatible via its USB connector. The USBG-232MINI Mini USB RS-232 Serial Adapter is great for newer technologies with no serial port connections.

The high-speed DB-9 serial port with the 128 byte FIFO allows for high-speed communication between devices, even in heavy loaded systems. One of the unique features of this adapter is reduction of the system load. The serial port also allows unusual speed settings like 500.000bps. The USBG-232MINI also comes with a 3 foot USB Extension cable!

Features:

  • Adds one RS-232 serial port by connecting to a USB port.

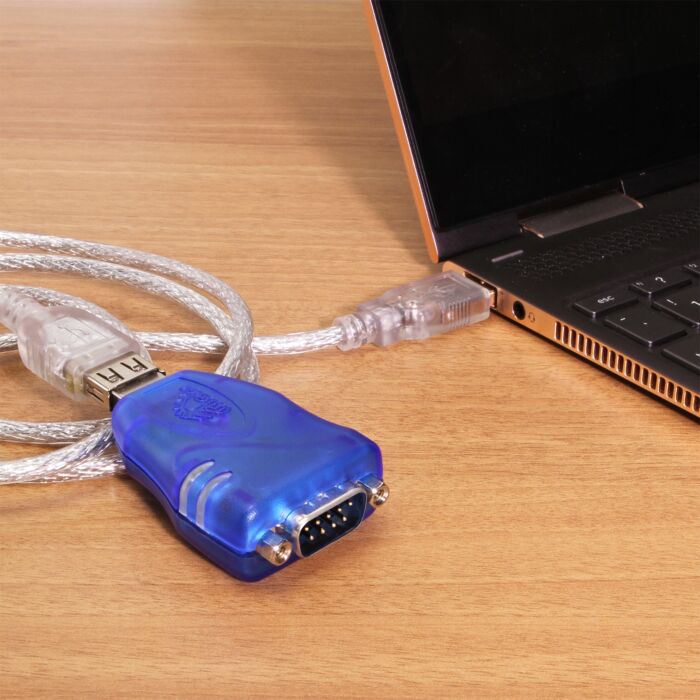

  • Includes 3 foot USB extension cable.
  • Compact size cable type converter with cable length of 25 cm
  • Installed as standard Windows COM port
  • Full RS-232 modem control signals and hardware/software flow control
  • Transmit Buffer: 256 bytes
  • Receive Buffer: 128 bytes
  • RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
  • High speed serial port with the baud rate up to 921.6K bps
  • Non-standard baudrates supported
  • LED status indicators for TxD and RxD for easy port monitoring and diagnostic
  • Serial port protected with surge protection of 15kV
  • Powered by USB port, no external power adapter required
  • Easy plug and play installation and RS-232 device connection
  • COM port number assigned can be changed to any COM port number required
  • Works with USB 1.1 & 2.0 host port
  • Dimensions: (Adapter only) 65.50mm(L) x37.10mm(W) x 18.80mm(H)

OS Support:

  • Windows Windows 7,8, 10, and 11
  • Linux and Mac OS 10.X
  • Note: As of June 2018 Windows XP is no longer supported. Please contact us if you require Windows XP support.

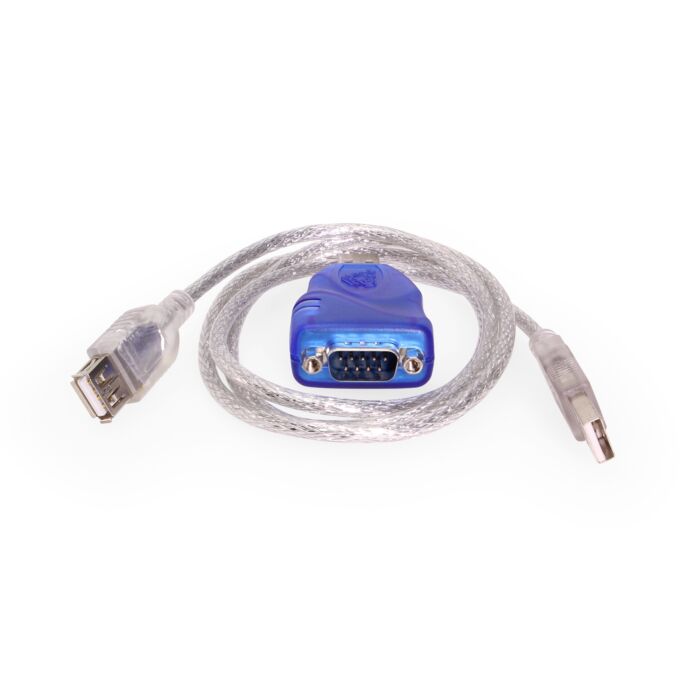

Package Contents:

  • Mini USB 2.0 to RS-232 DB-9 Serial Adapter
  • 3ft. USB Type-A Male to Type-A Female Cable

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: USBGearWarranty: 1 YearAvailability: Available
Barcode: 729440625108Ship Weight: 0.34Condition: New
Part Number: USBG-232MINIColor: BlueLength/Size: in
Port Count: 1Port Type: Male DB9 /W NutsInput Voltage: 5V DC
Temperature(Op): 0C ~ 55CESD Protection: 15kvSerial Modes: RS232
LEDs: TX/RXIsolation: --Chip: FTDI FT231XQ

Specifications

Manufacturer: USBGear
Barcode: 729440625108
Part Number: USBG-232MINI
Warranty: 1 Year
Ship Weight: 0.34
Color: Blue
Availability: Available
Condition: New
Port Count: 1
Port Type: Male DB9 /W Nuts
Input Voltage: 5V DC
Temperature(Op): 0C ~ 55C
ESD Protection: 15kv
Isolation: --
Serial Modes: RS232
LEDs: TX/RX
Chip: FTDI FT231XQ

User Reviews

Product Rating:
(13reviews)
4.7 out of 5 stars

LAST 4 REVIEWS

VIEW ALL REVIEWS
Product Rating:
4 out of 5 stars
Good service, product necessary but challenging

By: Cee Cee on 10/23/2020

These should not break so easily. Coming out of the usb directly for such a large piece. Low price and decent delivery time, but being without function during that time is debilitating to our business.
Product Rating:
4.3 out of 5 stars
Product is great for serial to usb conversion.

By: drcook on 12/14/2019

I purchased this device for use with a Rainwise serial port receiver. It was simple to setup and it worked fine. As suggested, just run it and win10 will download the appropriate software. Nice.
Product Rating:
5 out of 5 stars
Works fine, good product.

By: Mike on 07/26/2018

Good product. Drivers installed without a problem. was up and running in a few minutes. The only change I would suggest is that the screws had to be removed to plug the adapter into the DB9 side. If the adapter had a flange it could work with male or female screws. Overall works fine.
Product Rating:
5 out of 5 stars
Good

By: shikik on 02/19/2018

This device solved my connection issue right away. I suppose it has the right stuff

Similar Items

Similar Item Image
USB to Serial RS232 DB9 Adapter FTDI Chipset, Windows 11 Support
USBG-232
Similar Item Image

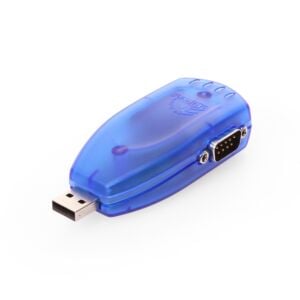

Dual Port DB-9 USB Serial Ultra MINI Adapter with Cable RS-232 X 2
